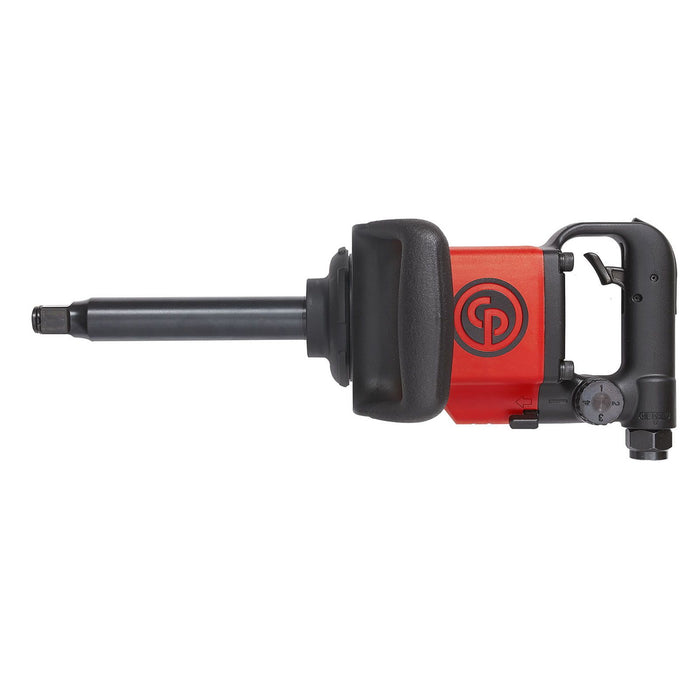

Chicago Pneumatic CP7763D-6, 3/4"Impact Wrench, 1450 Nm Torque, 6600 Rpm Free Speed – 8941077637
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077637
The CP7763/CP7773 Series impact wrench features 3/4" and 1" square drives and delivers reverse torque up to 1,630 Nm / 1,200 ft.lb. Designed for general maintenance and tire changing. Its twin hammer impact mechanism and its composite housing offer high durability in bolting & unbolting applications while also being lightweight and compact. Available in 6 models: 3/4" pistol short anvil, 3/4" pistol long anvil, 3/4" D-handle short anvil, 3/4" D-handle long anvil (6" anvil), 1" D-handle short anvil, and 1" D-handle long anvil (6" anvil).Product Feature: Composite housing and twin hammer impact mechanism for high durability A lightweight and compact tool in a composite motor housing that offers greater comfort Equipped with intuitive Forward / Reverse lever for easy operation Power regulator for a controlled approach
-
- Max working torque fwd: 1450 Nm
- Max torque reverse: 1760 Nm
- Min working torque fwd: 340 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 109 dB(A)
- Sound Pressure: 98 dB(A)
- Uncertainty vibration-K: 3.3 m/s²
- Free Speed: 6600 rpm
- Air consumption at free speed: 26 l/s
- Length (L): 445 mm
- Side to Center: 45 mm
- Weight: 7.3 kg
- Body: Composite
- Clutch housing: Aluminum
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mecanism: Twin hammer
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Friction ring
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
