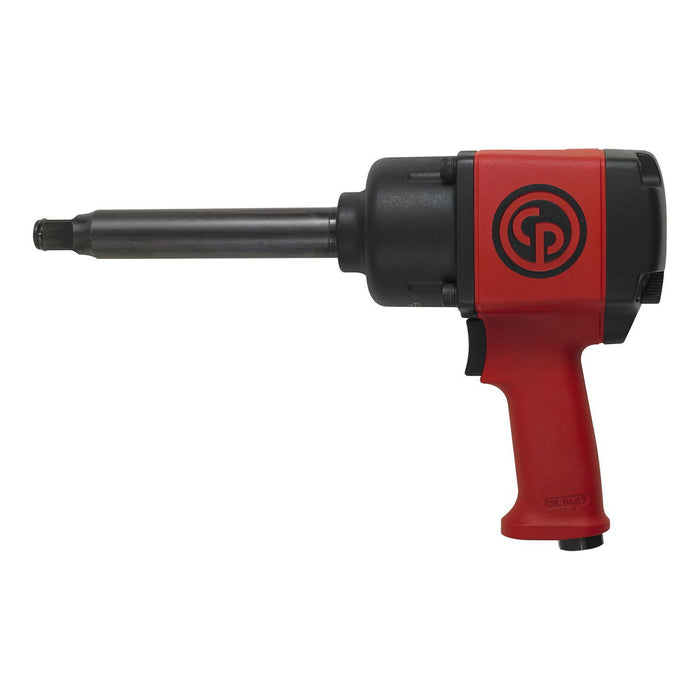

Chicago Pneumatic CP7763-6, 3/4" Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077636
The Chicago Pneumatic CP7763-6 delivers the kind of raw, industrial-grade power that heavy-duty professionals demand from a 3/4'' drive air impact wrench, making it one of the most capable cp impact wrenches available for serious workshop and fleet maintenance applications. Generating an impressive 1280 Nm of maximum working torque in forward and a formidable 1630 Nm in reverse, this chicago pneumatic impact wrench tears through stubborn fasteners with authority, whether tackling truck wheel nuts, heavy plant equipment, or large structural assemblies. Running at 6300 RPM free speed, the CP7763-6 combines blistering rotational performance with a minimum working torque of 136 Nm, giving operators meaningful control across a wide torque range without requiring a torque-limiting mechanism. This makes it equally at home on repetitive production line work as it is on the most demanding one-off removal tasks. The 3/4'' square drive is the go-to choice for commercial vehicle workshops, mining operations, agricultural machinery servicing, and heavy construction environments where smaller drives simply cannot cope with the fastener sizes or torque requirements involved. Backed by Chicago Pneumatic's reputation for durable, dependable air impact wrench engineering, the CP7763-6 is the professional's choice when downtime is not an option and maximum torque output is non-negotiable. Available now at MachineRefurb.com with fast despatch to keep operations running at full capacity.Product Feature: Composite housing and twin hammer impact mechanism for high durability A lightweight and compact tool in a composite motor housing that offers greater comfort Equipped with intuitive Forward / Reverse lever for easy operation Power regulator for a controlled approach About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 1280 Nm
- Max torque reverse: 1630 Nm
- Min working torque fwd: 136 Nm
- Torque limited: No
- Air consumption at load: 16 l/s
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 107 dB(A)
- Sound Pressure: 96 dB(A)
- Uncertainty vibration-K: 4.2 m/s²
- Vibration (m/s²): 10.4
- Vibration: 10.4 m/s²
- Free Speed: 6300 rpm
- Length (L): 381 mm
- Power weight ratio: 250 Nm/kg
- Side to Center: 45 mm
- Weight: 6.28 kg
- Blow per minute: 900
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mechanism: Twin hammer
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Dual
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
