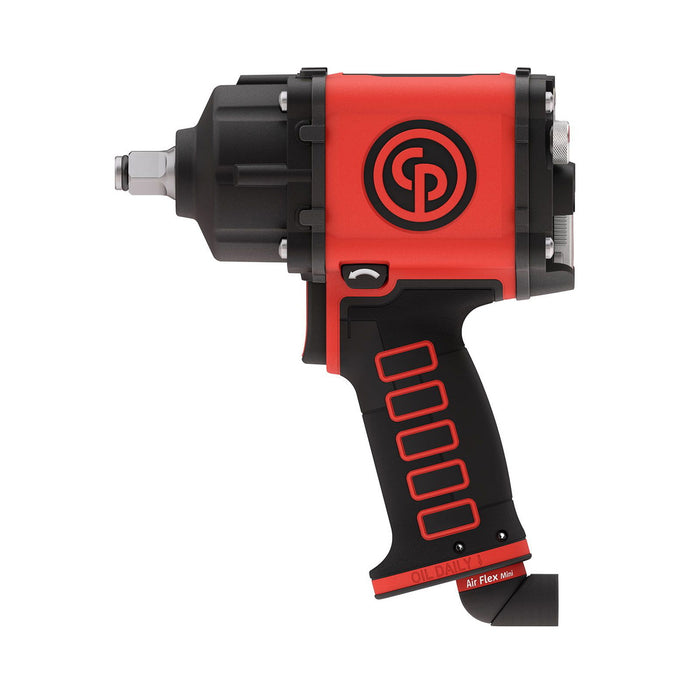

Chicago Pneumatic CP7755, 1/2" Air Impact Wrench - Short Anvil, Air Flex Mini, 1/2" Air Inlet
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077551
The Chicago Pneumatic CP7755 delivers exceptional power and precision in a compact package, making it one of the most capable half-inch air impact wrenches available for demanding workshop and garage environments. With a maximum working torque of 575 Nm forward and an impressive 1300 Nm in reverse, this cp impact wrench tears through stubborn fasteners with consistent, reliable force. The short anvil design gives the CP7755 all the grunt of a full-size unit in a form factor that rivals a stubby air impact wrench, allowing technicians to work confidently in tight engine bays, undercarriage sections, and restricted access points where a longer tool simply cannot reach. Running at 7700 RPM, the Chicago Pneumatic CP7755 maintains a brisk working pace without sacrificing control, while the minimum working torque of 80 Nm forward ensures the tool remains usable across a wide range of fastener sizes. The standard half-inch square drive makes it fully compatible with widely available sockets and accessories, reducing tooling costs and setup time. Built to Chicago Pneumatic's exacting standards, this 1/2 air impact wrench combines durable internal components with an ergonomic housing that reduces operator fatigue during extended use. This tool is ideally suited for automotive workshops, tyre fitting centres, truck maintenance bays, and agricultural equipment servicing where daily, high-intensity use demands both raw power and consistent mechanical reliability.Product Feature: Unique multi-position power control system: 11 setting options Patented Air Flex Mini air inlet: 360° swivel air inlet for freedom of movement Twin hammer impact mechanism, hard chromium aluminium cylinder, and bumpers all around the tool for high durability Due to its composite motor housing, the tool is compact and lightweight About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 575 Nm
- Max torque reverse: 1300 Nm
- Min working torque fwd: 80 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 105 dB(A)
- Sound Pressure: 94 dB(A)
- Uncertainty vibration-K: 3.4 m/s²
- Free Speed: 7700 rpm
- Air consumption at free speed: 2.6 l/s
- Height (H): 205 mm
- Length (L): 169 mm
- Width (W): 76 mm
- Power weight ratio: 670 Nm/kg
- Side to Center: 38 mm
- Weight: 1.93 kg
- Blow per minute: 1200
- Body: Composite
- Handle type: Pistol
- Impact mechanism: Twin hammer
- Output drive size (in): 1/2
- Output drive type: Sq
- Output retainer type: Friction ring
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
