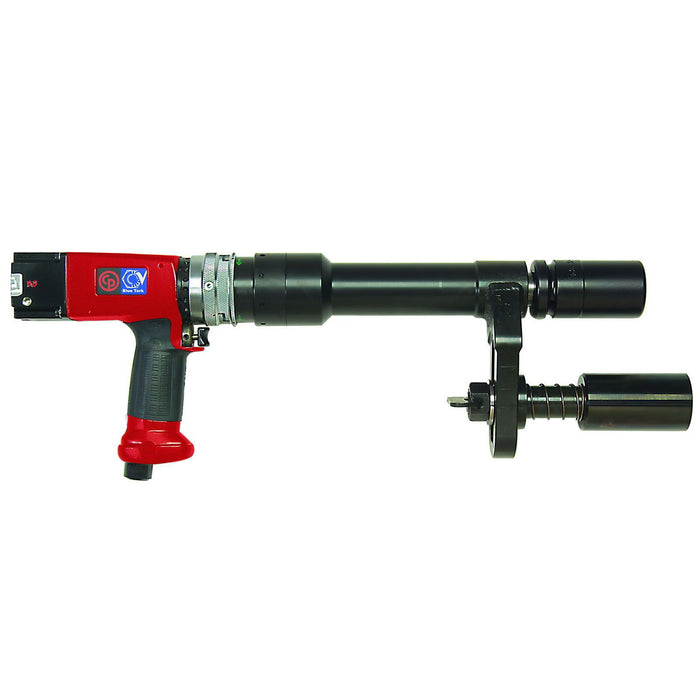

Chicago Pneumatic CP7600xC-R4P, 1" Pneumatic Nutrunner
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941076025
The Chicago Pneumatic CP7600xC-R4P delivers the precision and raw power that demanding assembly operations require, combining consistent shut-off torque control with a rugged 1-inch drive configuration built for high-output industrial environments. As a cp impact wrench engineered specifically for controlled fastening applications, it eliminates the guesswork from torque-critical joints by automatically shutting off at a pre-set torque value, protecting both the fastener and the assembly from costly over-tightening. Generating a maximum forward and reverse torque of 900 Nm with a minimum forward torque of 450 Nm, this chicago pneumatic impact wrench offers an impressive working range that suits everything from light assembly runs to heavy-duty bolting tasks. The shut-off-p torque control system ensures each fastening cycle is repeatable and traceable, making it an ideal choice for production lines where quality assurance is non-negotiable. The bar cup design provides operators with a secure, ergonomic grip that reduces fatigue during prolonged use, while the 1-inch square drive accommodates the large sockets demanded by heavy industrial fasteners. This air impact wrench is the go-to tool for automotive manufacturers, heavy equipment assemblers, and structural steel contractors who need verified torque accuracy on every cycle. Whether tightening suspension components, drivetrain assemblies, or structural bolting applications, the CP7600xC-R4P brings professional-grade shut-off performance to the production floor with confidence.Product Feature: Air Shut-off torque control at preset torque Selection of up to 4 calibrated tightening torques with high accuracy Short version with CUPS reaction bar optional Low noise level (
-
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 450 Nm
- Torque Control System: Shut-off-pneumatic valve
- Adjustment: Key
- Handle type: Pistol
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: Standard Cup included
- Reversible: Yes
- Spline type: 0
- Starting system: Trigger
- Free Speed: 100 rpm
- Air consumption at free speed: 19 l/s
- Length (L): 495 mm
- Weight: 9.1 kg
- Sound Power: 90 dB(A)
- Sound Pressure: 79 dB(A)
- Vibration (m/s²): <2.5
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSPP
- Max dynamic air working pressure: 7 bar
- Min hose diam (5 m hose length): 13 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
