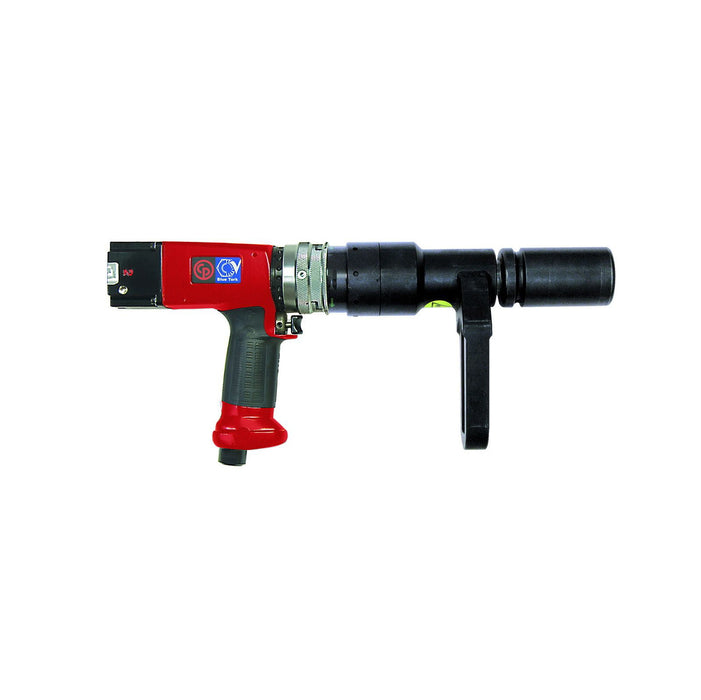

Chicago Pneumatic CP7600C-R4, 1" Pneumatic Nutrunner
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941076035
Delivering consistent, repeatable torque on the most demanding fastening applications, the Chicago Pneumatic CP7600C-R4 1-inch shut-off pneumatic nutrunner gives assembly professionals a precise and reliable solution for high-torque production environments. Engineered with a sophisticated shut-off-p torque control system, this cp impact wrench automatically disengages the drive when the preset torque value is reached, eliminating the risk of over-tightening and protecting both the fastener and the workpiece throughout every cycle. Capable of generating up to 900 Nm of torque in both forward and reverse directions, with a minimum forward torque of 450 Nm, the tool delivers a broad and controllable torque range that suits a wide variety of joint conditions. The 1-inch square drive handles heavy-duty fasteners with confidence, while the bar cup design ensures a secure and ergonomic grip even during prolonged use. Pneumatic operation keeps weight low and power-to-size ratios high, making this air impact wrench a practical choice wherever compressed air is readily available. The CP7600C-R4 is built to meet the rigorous demands of automotive manufacturing, heavy vehicle assembly, agricultural equipment production, and industrial machinery maintenance. Whether tightening critical structural bolts on a production line or managing torque-sensitive joints in a workshop environment, this chicago pneumatic impact wrench brings the accuracy, durability, and throughput that quality-driven assembly teams depend on every shift.Product Feature: Air Shut-off torque control at preset torque Selection of up to 4 calibrated tightening torques with high accuracy Short version with CUPS reaction bar optional Low noise level (
-
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 450 Nm
- Torque Control System: Shut-off-pneumatic valve
- Adjustment: Key
- Handle type: Pistol
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: Blade & Cup not included
- Reversible: Yes
- Spline type: 0
- Starting system: Trigger
- Free Speed: 100 rpm
- Air consumption at free speed: 19 l/s
- Length (L): 380 mm
- Weight: 7.7 kg
- Sound Power: 90 dB(A)
- Sound Pressure: 79 dB(A)
- Vibration (m/s²): <2.5
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSPP
- Max dynamic air working pressure: 7 bar
- Min hose diam (5 m hose length): 13 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
