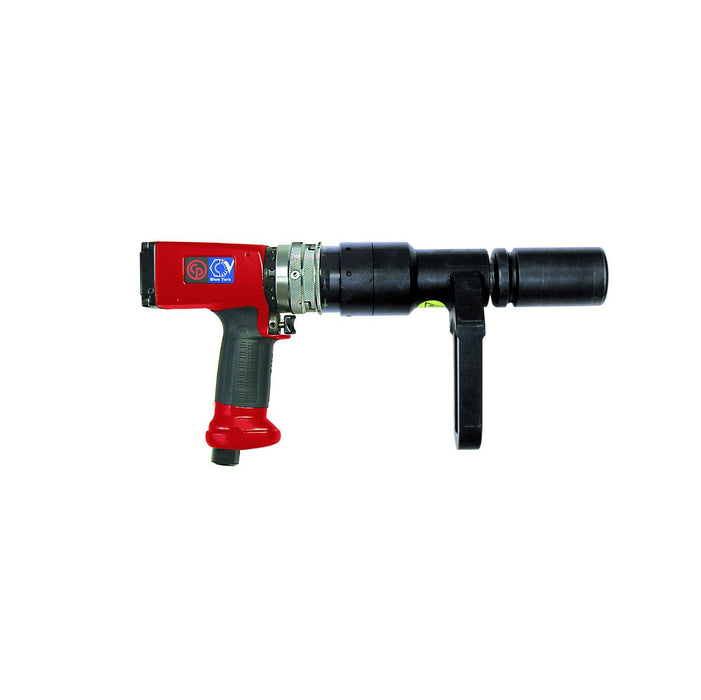

Chicago Pneumatic CP7600C-R, 1" Pneumatic Nutrunner
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941076031
The Chicago Pneumatic CP7600C-R delivers the precision torque control that demanding assembly and production environments require, combining shut-off clutch technology with genuine industrial-grade reliability in a compact, bar cup configuration. Engineered for professionals who cannot afford inconsistent fastening results, this 1-inch drive pneumatic nutrunner achieves a maximum forward and reverse torque of 900 Nm while allowing operators to dial in a minimum forward torque threshold of 450 Nm - giving teams the flexibility to handle a wide range of fastening applications without tool changes or compromise. At the heart of the CP7600C-R is its shut-off torque control system, which automatically disengages drive upon reaching the preset torque value, protecting both the fastener and the joint from costly over-tightening. As a cp impact wrench built to Chicago Pneumatic's exacting standards, it upholds the brand's reputation for durability in continuous-duty cycles. The ergonomic bar cup handle design reduces operator fatigue during high-volume production runs, while the air impact wrench format ensures consistent power delivery across every cycle without battery degradation or recharging downtime. This tool is the ideal choice for automotive assembly lines, heavy equipment manufacturing, and commercial vehicle maintenance facilities where repeatable torque accuracy on critical bolted joints is non-negotiable. Teams working with wheel fasteners, suspension components, and structural assemblies will find the CP7600C-R an indispensable addition to their pneumatic tooling programme.Product Feature: Air Shut-off torque control at preset torque Selection of up to 4 calibrated tightening torques with high accuracy Short version with CUPS reaction bar optional Low noise level (
-
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 450 Nm
- Torque Control System: Shut-off-pneumatic valve
- Adjustment: Key
- Handle type: Pistol
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: Blade & Cup not included
- Reversible: Yes
- Spline type: 0
- Starting system: Trigger
- Free Speed: 100 rpm
- Air consumption at free speed: 19 l/s
- Length (L): 345 mm
- Weight: 7.4 kg
- Sound Power: 90 dB(A)
- Sound Pressure: 79 dB(A)
- Vibration (m/s²): <2.5
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSPP
- Max dynamic air working pressure: 7 bar
- Min hose diam (5 m hose length): 13 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
