Chicago Pneumatic CP7412, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941074120

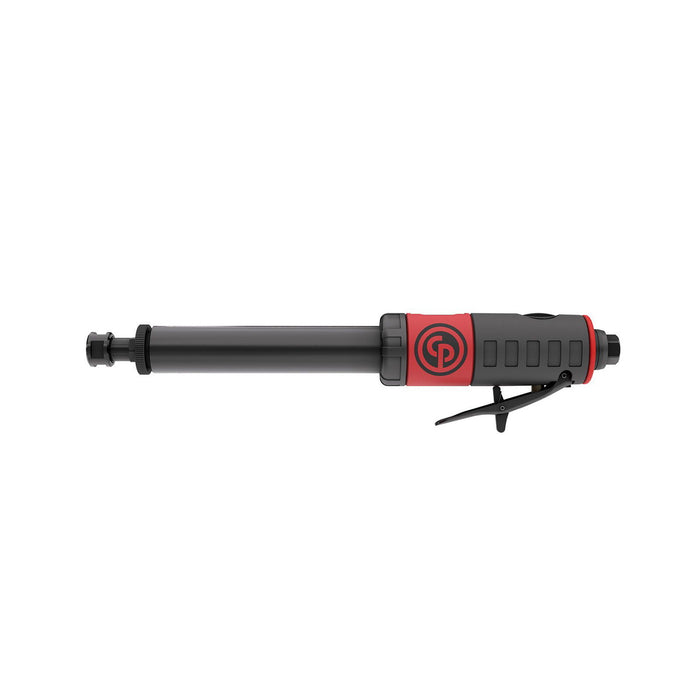

The Chicago Pneumatic CP7412 is a high-performance 1/4'' air die grinder engineered for professionals who demand precision, power, and endurance in the most demanding workshop environments. Delivering an impressive 420 W of maximum power alongside a 22,000 RPM free speed, this pneumatic die grinder cuts through grinding, deburring, and surface finishing tasks with remarkable efficiency and control. Weighing just 1.1 kg and measuring 330 mm in length, the CP7412 strikes an ideal balance between a compact, ergonomic form factor and the raw capability required for sustained production use. The slim, pencil die grinder profile allows operators to access tight spaces and intricate workpiece geometries where bulkier tools simply cannot reach, making it a preferred choice across fabrication, automotive, aerospace, and metal finishing industries. With an air consumption rate of 1.7 l/s at free speed, the CP7412 operates with commendable efficiency, reducing compressor load during extended shifts without compromising output. The 6 mm collet accommodates a wide range of standard grinding bits, burrs, and mounted points, giving technicians the flexibility to tackle diverse material removal and finishing applications with a single tool. Whether deployed on the production floor for high-volume deburring operations or in the hands of a skilled tradesperson refining weld seams and porting cylinder heads, the Chicago Pneumatic cp die grinder CP7412 delivers the consistent, reliable performance that professionals at MachineRefurb.com customers rely on every day.Product Feature: Burrs easily changeable allowing the operator to use only one wrench thanks to the new spindle lock system. Good surface grip avoiding the tool to slip once in operator's hand thanks to the handle's material (TPR) and ergonomics. High application coverage thanks to the multitude of heads (short & long straight, 120°, 90°) Less heat transfer between the motor and the sleeve thanks to the composite housing About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 330 mm
- Weight: 1.1 kg
- Max power: 420 W
- Free Speed: 22000 rpm
- Air consumption at free speed: 1.7 l/s
- Air consumption at load: 1.4 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 91.4 dB(A)
- Sound Pressure: 80.4 dB(A)
- Uncertainty vibration-K: 0.8 m/s²
- Vibration: 2.6 m/s²
- Angle Type: Straight
- Collet max capacity: 1/4 (6.4mm)
- Exhaust: Rear
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: Yes
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
