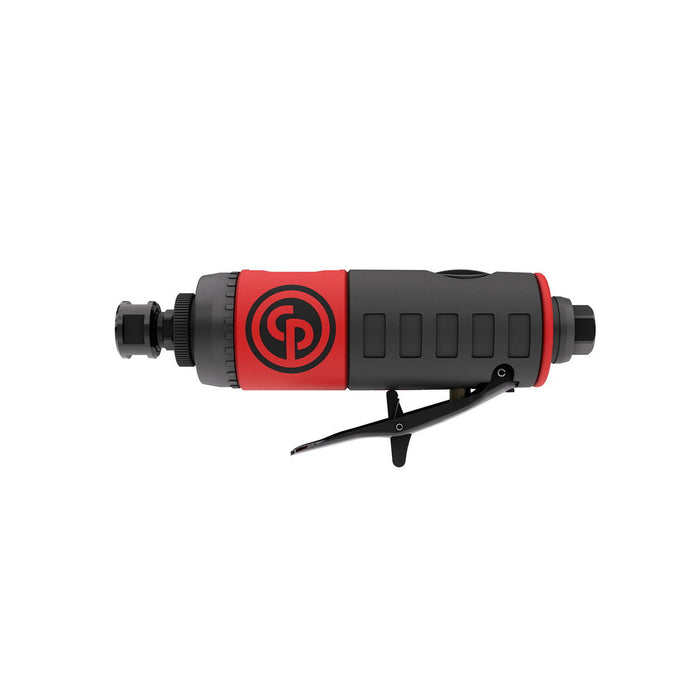

Chicago Pneumatic CP7411, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941074110
The Chicago Pneumatic CP7411 is a precision-engineered 1/4'' air die grinder built for professionals who demand consistent performance in tight spaces and demanding environments. Delivering an impressive 420 W of maximum power at a free speed of 22,000 RPM, this compact pneumatic die grinder offers the raw capability needed to tackle grinding, deburring, porting, and surface finishing tasks across automotive, fabrication, and maintenance applications with ease. Weighing just 0.7 kg and measuring 180 mm in length, the CP7411 handles like a true pencil die grinder, reducing operator fatigue during extended use while maintaining the control required for precision work. Its lightweight, slender profile allows access to recessed areas and confined workspaces where larger tools simply cannot reach, making it a favourite among mechanics and metalworkers alike. The tool operates with an air consumption of just 1.7 l/s at free speed, ensuring efficient use of compressor resources without sacrificing output. The 6 mm collet accepts a wide range of standard burrs, mounted points, and grinding accessories, giving users exceptional versatility across different materials and job requirements. As a cp die grinder designed with ergonomics and durability at its core, it connects seamlessly into any professional air line setup. Whether used on a production line, in a body shop, or out in the field, this chicago pneumatic die grinder is the dependable, high-speed solution for any tradesperson requiring a reliable and capable air die grinder day in, day out.Product Feature: Burrs easily changeable allowing the operator to use only one wrench thanks to the new spindle lock system. Good surface grip avoiding the tool to slip once in operator's hand thanks to the handle's material (TPR) and ergonomics. High application coverage thanks to the multitude of heads (short & long straight, 120°, 90°) Less heat transfer between the motor and the sleeve thanks to the composite housing About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 180 mm
- Weight: 0.7 kg
- Max power: 420 W
- Free Speed: 22000 rpm
- Air consumption at free speed: 1.7 l/s
- Air consumption at load: 1.4 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 91.7 dB(A)
- Sound Pressure: 80.7 dB(A)
- Uncertainty vibration-K: 0.8 m/s²
- Vibration: 3.1 m/s²
- Angle Type: Straight
- Collet max capacity: 1/4 (6.4mm)
- Exhaust: Rear
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: Yes
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
