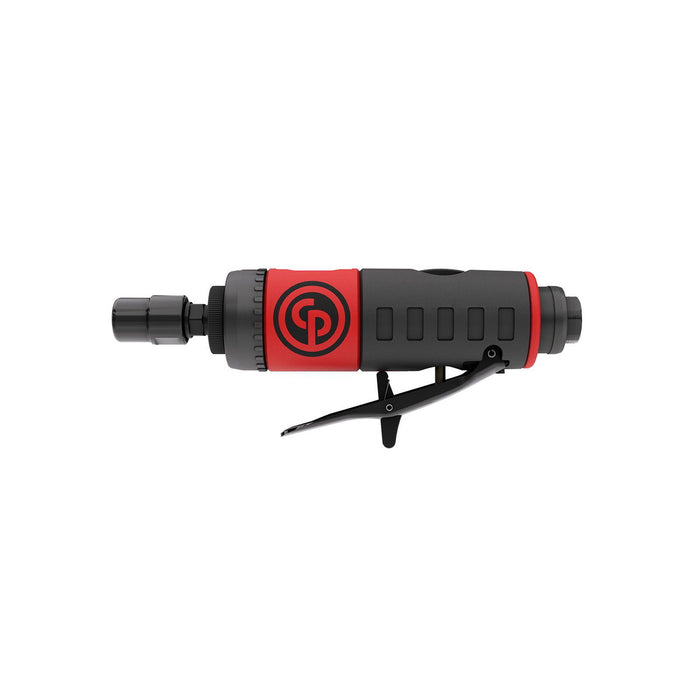

Chicago Pneumatic CP7405, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941074050
The Chicago Pneumatic CP7405 delivers the precision and power that professional machinists and fabricators demand from a compact air die grinder. Weighing just 0.5 kg and measuring 176 mm in length, this lightweight pneumatic die grinder is engineered for extended use in tight spaces without operator fatigue. Its ergonomic pencil die grinder profile fits naturally in the hand, giving users exceptional control when working on intricate grinding, deburring, and finishing tasks. Powered by compressed air and capable of reaching a free speed of 28,000 RPM with a max power output of 250 W, the chicago pneumatic die grinder CP7405 handles demanding material removal with ease. The 1/4-inch collet accepts a wide range of standard mounted points, burrs, and cutting accessories, making this cp die grinder a versatile addition to any workshop or production line. Its robust internal components are built to Chicago Pneumatic's exacting standards, ensuring consistent performance and long service life even in high-cycle industrial environments. The CP7405 is the ideal air die grinder for aerospace technicians, automotive engineers, and metalworking professionals who need reliable rotational speed, a compact form factor, and low-vibration operation. Whether smoothing weld seams, shaping aluminium components, or cleaning casting flash in confined areas, this air pencil grinder performs with the accuracy and endurance that serious applications require.Product Feature: Burrs easily changeable allowing the operator to use only one wrench thanks to the new spindle lock system. Good surface grip avoiding the tool to slip once in operator's hand thanks to the handle's material (TPR) and ergonomics. High application coverage thanks to the multitude of heads (short & long straight, 120°, 90°) Less heat transfer between the motor and the sleeve thanks to the composite housing About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Height (H): 1 mm
- Length (L): 176 mm
- Width (W): 1 mm
- Weight: 0.5 kg
- Max power: 250 W
- Free Speed: 28000 rpm
- Air consumption at free speed: 1.3 l/s
- Air consumption at load: 1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 87.2 dB(A)
- Sound Pressure: 76.2 dB(A)
- Uncertainty vibration-K: 1 m/s²
- Vibration: 3.6 m/s²
- Angle Type: Straight
- Collet max capacity: 1/4 (6.4mm)
- Exhaust: Rear
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: Yes
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
