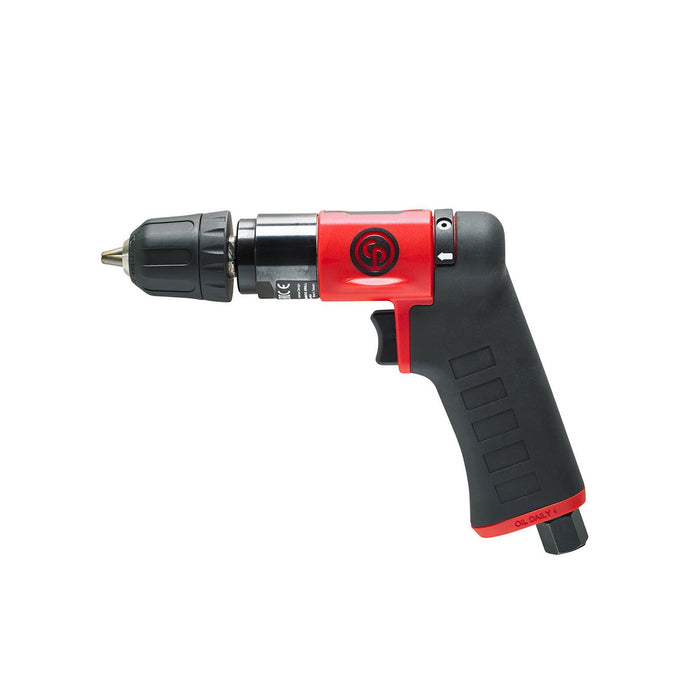

Chicago Pneumatic CP7300RQCC, 1/4" Air Drill
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941073012
Engineered for precision and reliability in demanding workshop environments, the Chicago Pneumatic CP7300RQCC delivers consistent performance where accuracy and control matter most. This compact CP air drill combines a 230 W power output with 2.6 Nm of torque, making it an ideal solution for professionals who require dependable drilling performance across a wide range of materials and applications. The CP7300RQCC features a 1/4 inch keyless chuck with a maximum capacity of 6.4 mm, allowing for fast, tool-free bit changes that keep productivity high on busy shop floors. Its pistol-style handle provides a natural, ergonomic grip that reduces operator fatigue during extended use, while the lightweight aluminium construction keeps the overall tool weight low without compromising durability. As a refined chicago pneumatic air drill, it benefits from the brand's decades of pneumatic engineering expertise, translating into smooth operation and long service life. Operators searching for a capable cp air drill in the quarter-inch category will appreciate the balance between power and compactness that this model offers. The keyless chuck mechanism ensures secure bit retention across varying drill speeds, supporting consistent hole quality in metal, plastic, and composite substrates. Whether deployed on a vehicle assembly line, in a fabrication shop, or within a general maintenance setting, the CP7300RQCC proves equally at home performing repetitive production drilling as it does tackling precision one-off tasks where controlled torque application is essential.Product Feature: Composite housing with thermoplastic rubber handle grip and wings on right & left sides for better operator comfort Large teasing trigger and progressive valve allowing more control to start holes Handle exhaust allowing the air to flow away from the operator Flat back part for better pushing action while drilling and tapping About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 1/4
- Chuck max capacity (mm): 6.4
- Chuck type: Keyless
- Handle type: Pistol
- Main Material type: Aluminium, Composite over-sleeve
- Reversible: Yes
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 93 dB(A)
- Sound Pressure: 82 dB(A)
- Air consumption at load: 0 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 230 W
- Stall torque: 2.6 Nm
- Free Speed: 2800 rpm
- Air consumption at free speed: 10 l/s
- Height (H): 146 mm
- Length (L): 190 mm
- Side to Center: 38 mm
- Weight: 0.69 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
