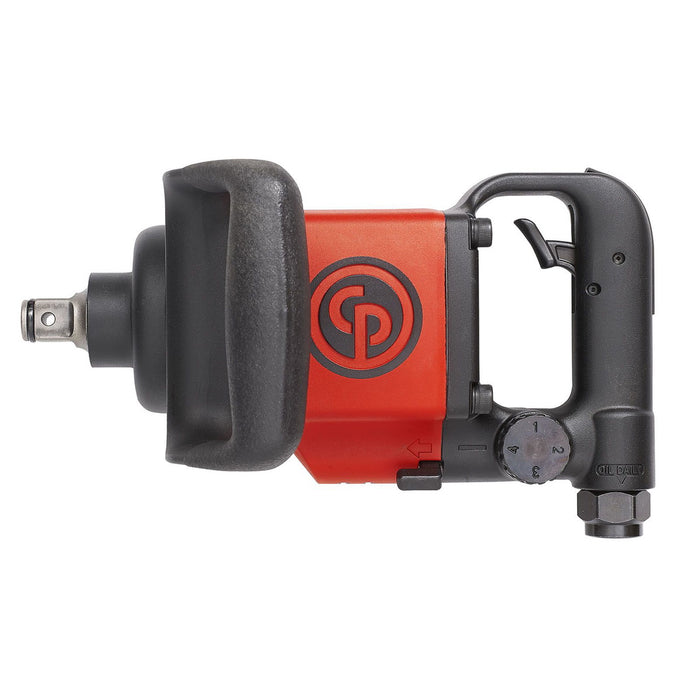

Chicago Pneumatic CP6763-D18D, 3/4" D-Handle Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151590640
The Chicago Pneumatic CP6763-D18D delivers the raw power and precision that heavy-duty industrial applications demand, making it one of the most capable air impact wrenches available for professional workshops and production facilities. Engineered with a robust 3/4-inch square drive and a comfortable D-handle configuration, this cp impact wrench generates an impressive 1450 Nm of maximum working torque in forward and an even more formidable 1760 Nm in reverse, giving technicians the muscle needed to break loose the most stubborn fasteners with confidence. The minimum working torque of 340 Nm ensures excellent versatility across a wide torque range, allowing operators to tackle both precision assembly tasks and high-load disassembly without switching tools. Running at 6600 RPM, this chicago pneumatic impact wrench delivers rapid fastener cycling that significantly improves throughput on demanding production lines and heavy vehicle servicing bays. The ergonomic D-handle design reduces operator fatigue during extended use, while the durable construction reflects Chicago Pneumatic's reputation for building tools that withstand the rigours of continuous industrial service. Designed for professionals who refuse to compromise on performance, the CP6763-D18D air impact wrench is the ideal choice for truck and bus fleet maintenance, heavy equipment servicing, mining operations, and large-scale manufacturing environments where consistent, high-torque output is non-negotiable. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 1450 Nm
- Max torque reverse: 1760 Nm
- Min working torque fwd: 340 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 13 mm
- Sound Pressure: 98 dB(A)
- Uncertainty vibration-K: 2.9 m/s²
- Free Speed: 6600 rpm
- Air consumption at free speed: 26 l/s
- Length (L): 290 mm
- Side to Center: 41 mm
- Weight: 6.6 kg
- Blow per minute: 730
- Body: Aluminium
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: Twin hammer
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Dual
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
