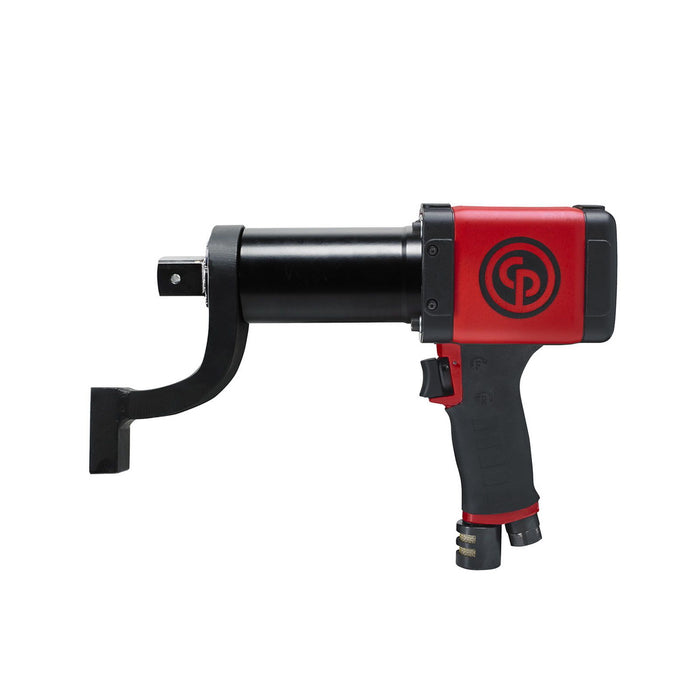

Chicago Pneumatic CP6626, 1" Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151800100
Delivering exceptional clamping force where it matters most, the Chicago Pneumatic CP6626 1-inch stall torque nutrunner is engineered for heavy-duty industrial fastening applications that demand consistent, high-output performance. Producing a maximum torque output of 2600 Nm in both forward and reverse, this powerful cp impact wrench ensures that even the most stubborn fasteners are no match for its robust drive system. With a minimum forward torque of 700 Nm, operators benefit from a broad working range that accommodates a wide variety of tightening tasks without the need for tool changes. Running at a free speed of 10 RPM, the CP6626 prioritises precise, controlled torque delivery over raw speed - a critical advantage in assembly environments where accuracy and repeatability are paramount. Its non-shut-off torque control system means the tool stalls naturally at the target load, making it a trusted chicago pneumatic impact wrench for joint integrity in structural, rail, mining, and heavy manufacturing settings. Built to the exacting standards that have made Chicago Pneumatic a benchmark in professional air tools, this air impact wrench combines durability with performance in a package designed for continuous industrial use. The 1-inch square drive makes it particularly well suited to large-bolt applications including wheel assemblies on heavy vehicles, flange bolting on pipework, and structural steel fabrication where reliable, repeatable torque is non-negotiable.Product Feature: Compact tool for tight high torque application Industrial FRL ATC pack for high accuracy Vane type impact wrench air motor for high performance Lightweight, swivelling handle and one-finger reverse mode for high operator comfort About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max torque in forward: 2600 Nm
- Max torque reverse: 2600 Nm
- Min torque in forward: 700 Nm
- Torque Control System: Non shut-off-stall
- Accuracy (%): ±5 %
- Adjustment: Torque Chart
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Composite
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 47
- Starting system: Trigger
- Suspension option: Optional
- Free Speed: 10 rpm
- Air consumption at free speed: 23 l/s
- Height (H): 212 mm
- Length (L): 300 mm
- Width (W): 72 mm
- Side to Center: 34 mm
- Weight: 5.1 kg
- Weight without reaction arm: 5.1 kg
- Weight with reaction arm: 6.5 kg
- Sound Power: 101 dB(A)
- Sound Pressure: 90 dB(A)
- Vibration (m/s²): <2.5
- Vibration: 2.7 m/s²
- Air inlet thread size (in): 3/8
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 16 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
