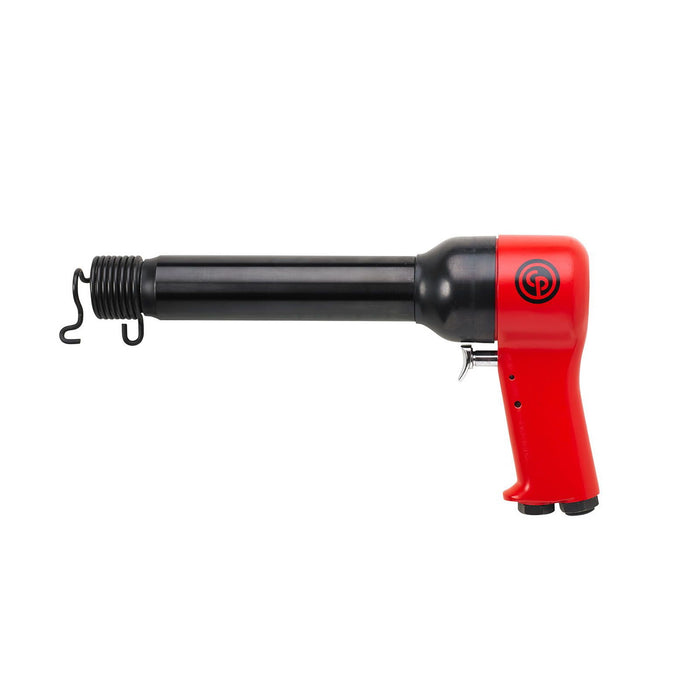

Chicago Pneumatic CP4289, Type 9X Air Rivet Hammer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151740650
The Chicago Pneumatic CP4289 Type 9X Rivet Hammer delivers the precise, controlled impact performance that automotive body technicians and metal fabricators demand from a professional-grade pneumatic hammer. Engineered for reliability in high-output workshop environments, this cp air hammer combines an efficient 2.8 l/s free-speed air consumption rate with a free-speed Normo rating of 12.3 Nl/s, ensuring consistent power delivery without overtaxing the air supply system. The standard 1/4-inch air inlet thread makes integration with existing workshop compressor setups straightforward, reducing downtime and keeping productivity on track. Built to Chicago Pneumatic's exacting standards, the CP4289 is a responsive and well-balanced pneumatic hammer that handles the repetitive demands of riveting, sheet metal shaping, and surface preparation with confidence. Its ergonomic design reduces operator fatigue during extended use, while the tool's robust internal construction ensures long service life even under the pressures of daily professional application. As a recognised chicago pneumatic air hammer in the heavy-duty tools segment, it pairs effectively with a broad range of air chisel and pneumatic chisel accessories, adding genuine versatility to any tool inventory. Whether tackling bodywork repairs in an automotive workshop, structural riveting on light fabrication lines, or detailed metal finishing tasks, the CP4289 Type 9X Rivet Hammer proves itself an indispensable air chisel hammer for professionals who refuse to compromise on performance or durability.Product Feature: A simple range for multiple aerospace application From 1X up to 9X rivet hammer type to cover a majority of aluminium and steel rivet size 7 models to cover all frequently used rivets in metal structure repair for Aerospace Very good durability for aerospace MRO. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at free speed (Normo): 12.3 1/sNl
- Air consumption at free speed: 2.8 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
- Sound Power: 113 dB(A)
- Sound Pressure: 102 dB(A)
- Uncertainty vibration-K: 4.8 m/s²
- Vibration: 26.7 m/s²
- Bore diameter: 19 mm
- Height (H): 160.3 mm
- Length (L): 284 mm
- Width (W): 63.5 mm
- Stroke: 132 mm
- Weight: 2.5 kg
- Blow per minute: 900
- Chisel shank diameter (in): 0.498
- Chisel shank diameter (mm): 12.7
- Energy: 19 J
- Main Material type: Aluminium, Steel
- Max rivet size aluminium (in): 3/8
- Max rivet size aluminium (mm): 9.5
- Max rivet size steel (in): 5/16
- Max rivet size steel (mm): 7.9
- Rivet hammer type: 9X
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
