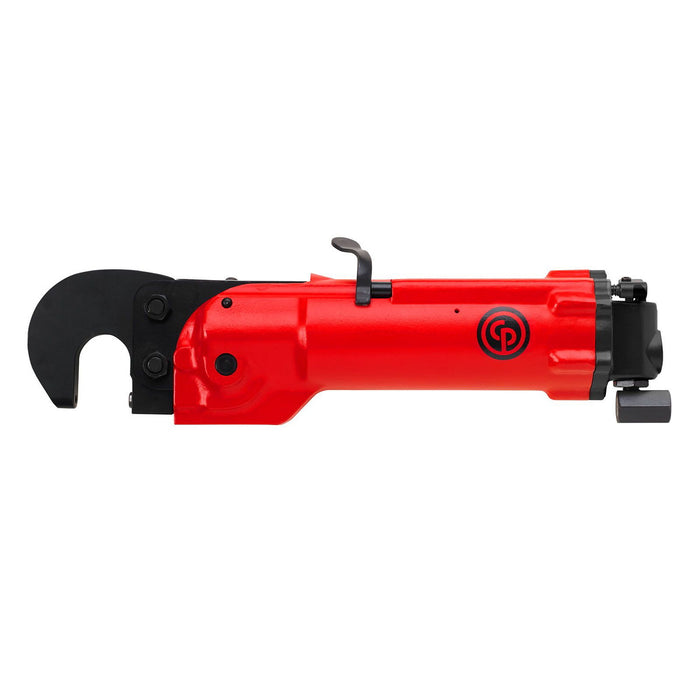

Chicago Pneumatic CP4220CS, Pneumatic Rivet Squeezer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151710190
The Chicago Pneumatic CP4220CS C Jaw Rivet Squeezer delivers exceptional riveting performance for aerospace, automotive, and sheet metal fabrication professionals who demand precision and reliability in every cycle. Engineered with a short C-jaw configuration, this pneumatic rivet squeezer applies consistent, controlled squeezing force that produces uniform shop heads without the distortion risks associated with impact-driven alternatives. The result is cleaner, stronger riveted joints that meet the exacting standards of structural assembly work. Compact and well-balanced at 2.49 kg, the CP4220CS sits comfortably in the hand during extended production runs, reducing operator fatigue without sacrificing the control needed for accurate rivet placement. The tool measures 355 mm in length and 84 mm in height, giving technicians excellent sightlines over the work surface, while the 14.3 mm maximum plunger travel accommodates a practical range of rivet sizes and stack thicknesses commonly encountered in light aircraft construction and precision metalwork. Built from robust primary materials selected for long service life in demanding workshop environments, this Chicago Pneumatic C short jaw squeezer integrates smoothly into compressed air systems already running pneumatic tooling lines. The short jaw reach makes it particularly well suited to flat panel work and flush-surface applications where access is less restricted, enabling fast, repeatable results across high-volume production settings. Parts for Machines stocks this tool ready to support professional fabricators looking to upgrade or replace their existing squeezer setup.Product Feature: Extremely good ergonomics - silent and vibrationless The different jaws make it possible to use for any rivets within 76 mm from an edge 6 models to cover the most frequently used rivets in Metal structure repair for Aerospace Very good durability for aerospace MRO. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Height (H): 84 mm
- Length (L): 355 mm
- Moving plunger max. travel: 14.3 mm
- Weight: 2.49 kg
- Jaw type: C-short
- Main Material type: Aluminium
- Max compression force (90psi/6.2bar): 26.7 kN
- Max rivet size aluminium (in): 3/16
- Max rivet size aluminium (mm): 4.8
- Max rivet size steel (in): 5/32
- Max rivet size steel (mm): 4
- Starting system: Safety lever
- Sound Power: 88 dB(A)
- Sound Pressure: 77 dB(A)
- Uncertainty vibration-K: 1.4 m/s²
- Vibration (m/s²): <2.5 m/s**2
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
