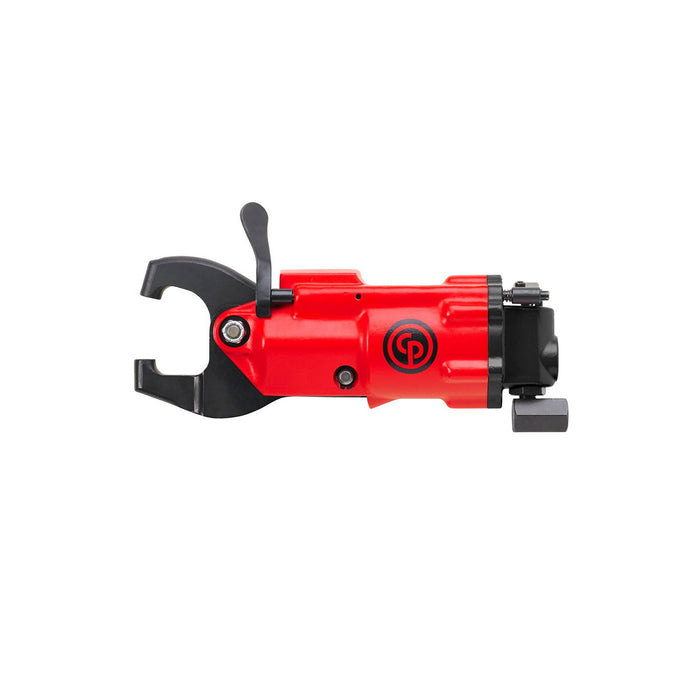

Chicago Pneumatic CP4210AS, Pneumatic Rivet Squeezer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151710200
The Chicago Pneumatic CP4210AS Alligator Jaw Rivet Squeezer delivers precise, consistent riveting performance that professionals in aerospace, automotive, and sheet metal fabrication rely on to produce clean, structurally sound joints every time. Designed for demanding production environments where accuracy and repeatability are non-negotiable, this compact yet capable pneumatic rivet squeezer brings together an ergonomic form factor and robust engineering in a tool that feels as good in the hand as it performs on the job. Weighing just 1.7 kg and measuring 233 mm in length with a height of 92 mm, the CP4210AS is built for accessibility in tight workspaces without sacrificing power or control. The short alligator jaw configuration is purpose-engineered to grip and squeeze rivets with exceptional alignment, reducing the risk of misformed heads and rework. A maximum plunger travel of 15.9 mm accommodates a practical range of rivet sizes, making this squeezer a versatile addition to any pneumatic tool lineup. The alligator short jaw design excels in applications where standard yoke squeezers simply cannot reach, particularly along flanged panels, fuselage skins, and structural brackets common in light aircraft assembly and precision sheet metal work. Whether used on a production line or in a specialist repair workshop, the Chicago Pneumatic CP4210AS rivet squeezer offers the dependability and finesse that skilled tradespeople demand from a professional-grade pneumatic riveting tool.Product Feature: Extremely good ergonomics - silent and vibrationless The different jaws make it possible to use for any rivets within 76 mm from an edge 6 models to cover the most frequently used rivets in Metal structure repair for Aerospace Very good durability for aerospace MRO. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Height (H): 92 mm
- Length (L): 233 mm
- Moving plunger max. travel: 15.9 mm
- Weight: 1.7 kg
- Jaw type: Aligator short
- Main Material type: Aluminium
- Max compression force (90psi/6.2bar): 13.3 kN
- Max rivet size aluminium (in): 1/8
- Max rivet size aluminium (mm): 3.2
- Max rivet size steel (in): 3/32
- Max rivet size steel (mm): 2.4
- Starting system: Safety lever
- Sound Power: 87 dB(A)
- Sound Pressure: 76 dB(A)
- Uncertainty vibration-K: 2.7 m/s²
- Vibration (m/s²): <2.5 m/s**2
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
