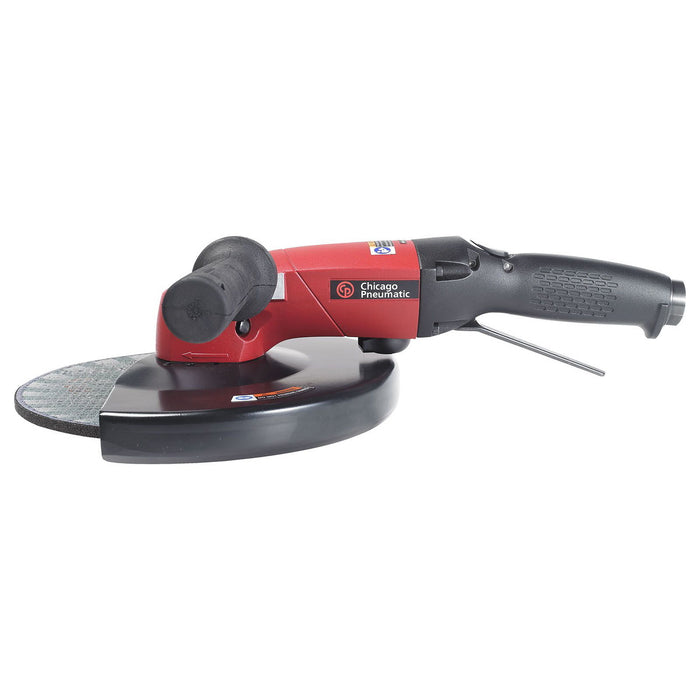

Chicago Pneumatic CP3850-65AH9VE, 9" Air Angle Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151704950
The Chicago Pneumatic CP3850-65AH9VE delivers the raw power and precision that demanding metalworking and fabrication professionals rely on day after day. Engineered to tackle the most challenging grinding, cutting, and surface preparation tasks, this 9-inch pneumatic angle grinder combines a formidable 2100 W output with a 6500 rpm free speed, ensuring consistent material removal across heavy-duty applications where performance cannot be compromised. As a premium chicago pneumatic air grinder, the CP3850-65AH9VE stands out with its integrated auto balancer, a feature that actively reduces vibration during operation to minimise operator fatigue and extend both tool and disc life over long working shifts. The guard system offers a generous 150-degree maximum rotation range, giving users the flexibility to adjust wheel protection quickly and safely as job requirements change without slowing down workflow. Air consumption at free speed runs at 21 l/s, making it essential to pair this air angle grinder with an adequately rated compressor to unlock its full potential. Built for professionals who expect nothing less than reliability from their chicago pneumatic grinder, the CP3850-65AH9VE is ideally suited to shipbuilding yards, heavy fabrication shops, structural steel contractors, and industrial maintenance teams handling large-scale weld dressing, stock removal, and surface conditioning on thick ferrous and non-ferrous materials where a high-performance 9-inch pneumatic tool is the only practical choice.Product Feature: Highly durable spiral bevel gear reduces vibration and torque transmission stress, resulting in a 2,000 h maintenance interval Double streamlined safety lever facilitates single-handed engagement and helps reduce risk of accidental start up Ergonomic, multi-position (360°), anti-vibration side handle to keep the operator's wrist straight and comfortable 360° adjustable air exhaust with integrated muffler for a noise level limited to 84 dB(A) Debris magnet to collect debris and extend super durable spiral bevel gear About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 6500 rpm
- Air consumption at free speed: 21 l/s
- Auto balancer: Yes
- Guard max rotation: 150 °
- Guard positions: 7
- Main Material type: Aluminium
- Rotative guard type: Screws
- Spindle lock: Yes
- Starting system: Safety lever
- Swiveling guard: Key
- Wheel/Disc diameter (in): 9
- Wheel/Disc diameter (mm): 230
- Sound Power: 104 dB(A)
- Sound Pressure: 93 dB(A)
- Uncertainty vibration-K: 1 m/s²
- Vibration: 5.4 m/s²
- Air consumption at load: 38 l/s
- Air inlet thread size (in): 1/2
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.63 in
- Min hose diam (5 m hose length): 16 mm
- Length (L): 340 mm
- Side to Center: 29 mm
- Weight: 2.9 kg
- Max power: 2100 W
-
New Grade - 24 Months Warranty from purchase is available on this product.
