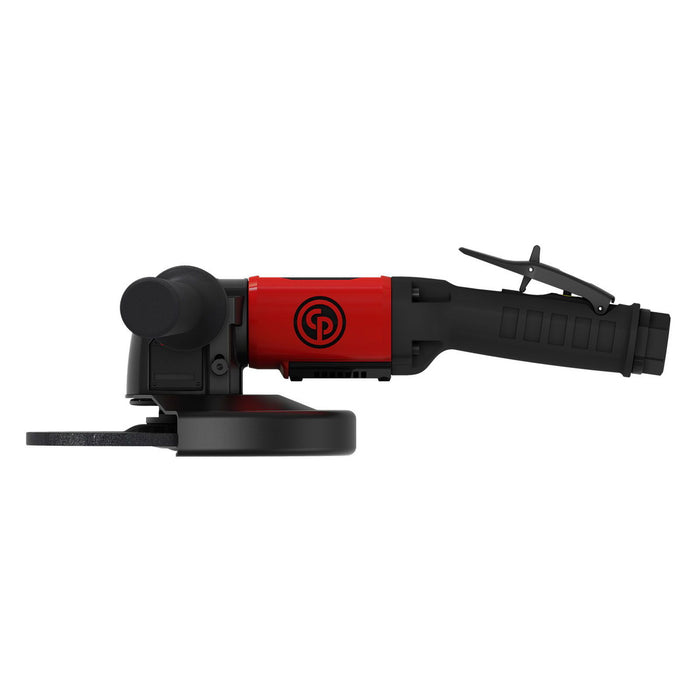

Chicago Pneumatic CP3750-085AB7, 7" Air Angle Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151607820
The Chicago Pneumatic CP3750-085AB7 delivers the raw cutting and grinding power that demanding metalworking professionals rely on day in, day out. Engineered for heavy-duty industrial applications, this 7 inch pneumatic angle grinder combines robust construction with consistent performance, making it a trusted choice for fabrication shops, shipyards, and structural steel contractors worldwide. Running at a free speed of 8500 rpm, the CP3750-085AB7 generates the rotational force needed to tackle aggressive stock removal, weld dressing, and surface preparation with confidence. Compatible with Type 27 abrasive wheels up to 180 mm in diameter, this chicago pneumatic air grinder accepts a wide range of discs to suit varying job requirements, from cutting and blending to heavy grinding. Air consumption at free speed sits at 18 l/s, so operators should ensure adequate compressor capacity to maintain peak throughput during extended production runs. The guard offers a maximum rotation of 1, allowing positioning to suit the operator's working angle and enhancing overall site safety. Built on Chicago Pneumatic's legacy of precision engineering, this 7 air grinder is designed to withstand the rigours of continuous professional use without sacrificing control or operator comfort. Whether tackling large fabrication projects or finishing structural components on site, the cp die grinder CP3750-085AB7 proves itself a dependable workhorse wherever consistent, high-torque pneumatic grinding performance is non-negotiable.Product Feature: 2,2 HP / 1640 W air motor Vibration dampening side handle 1000 Hours bevel gear durability (Checking at 500 hours) One hand reinforced Swiveling Guard Swiveling air inlet About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 8500 rpm
- Air consumption at free speed: 18 l/s
- Abrasive type: Type 27
- Auto balancer: No
- Guard max rotation: 120 °
- Guard positions: 7
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: 5/8-11 UNC
- Rotative guard type: Lock
- Spindle lock: Yes
- Starting system: Safety lever
- Swiveling guard: Keyless
- Wheel/Disc diameter (in): 7
- Wheel/Disc diameter (mm): 180
- Sound Power: 100 dB(A)
- Sound Pressure: 89 dB(A)
- Uncertainty vibration-K: 2.7 m/s²
- Vibration: 7.6 m/s²
- Air consumption at load: 35 l/s
- Air inlet thread size (in): 1/2
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.63 in
- Min hose diam (5 m hose length): 16 mm
- Height (H): 103 mm
- Length (L): 314 mm
- Width (W): 68 mm
- Side to Center: 33 mm
- Weight: 2.9 kg
- Max power: 1638 W
-
New Grade - 24 Months Warranty from purchase is available on this product.
