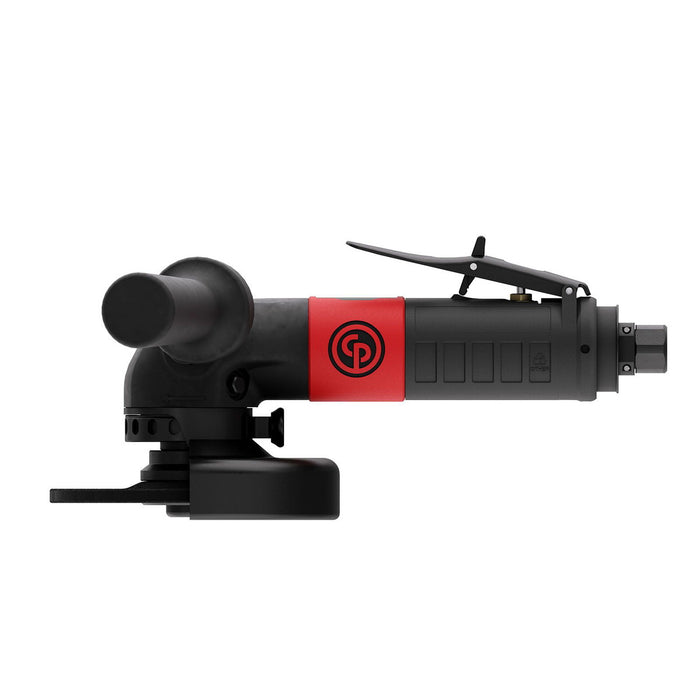

Chicago Pneumatic CP3650-120AB51800W, 125mm Air Angle Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151607850
The Chicago Pneumatic CP3650-120AB51800W delivers the raw cutting and grinding power that demanding fabrication and metalworking environments require. Engineered as a high-performance 5-inch industrial air angle grinder, this robust pneumatic tool combines a formidable 1,800W power output with a free speed of 12,000 RPM, giving operators the aggressive material removal rates needed to tackle heavy-duty weld dressing, surface preparation, and stock removal with confidence. Designed with versatility at its core, this chicago pneumatic air grinder features a 360-degree guard rotation, allowing the operator to quickly reposition the protective guard to suit the task at hand without slowing down production. Air consumption at free speed registers at 17.6 Nl/s, reflecting the efficient engineering Chicago Pneumatic has built into its professional-grade lineup. The tool's durable construction is built to withstand the rigours of continuous industrial use, making it a reliable choice for workshops, shipyards, and steel fabrication facilities where downtime is simply not an option. As a capable cp die grinder and angle grinder solution, the CP3650-120AB51800W accepts standard 125mm grinding wheels and cut-off discs, making it immediately compatible with existing consumable inventories. Whether operators are tackling structural steelwork, pipe fabrication, or heavy deburring operations, this chicago pneumatic grinder provides the sustained power delivery and ergonomic control needed to maintain productivity across long working shifts.Product Feature: +25% improved robustness with an exceptional bevel gear life of 2500 hours Governed motor for better productivity and reduced vibration A more durable design with a protective rubber on angle head housing and a steel swivelling air inlet Spindle lock button for fast and easy abrasive disc change Improved ergonomics with an orientable vibration damping side handle and a swivelling air inlet About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 12000 rpm
- Air consumption at free speed (Normo): 17.6 1/sNl
- Auto balancer: No
- Guard max rotation: 360 °
- Guard positions: 15
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: 5/8-11 UNC
- Rotative guard type: Pull and Turn
- Spindle lock: Yes
- Starting system: Safety lever
- Swiveling guard: Keyless
- Wheel/Disc diameter (in): 5
- Wheel/Disc diameter (mm): 125
- Sound Power: 101 dB(A)
- Sound Pressure: 90 dB(A)
- Uncertainty vibration-K: 2.5 m/s²
- Vibration: 7.4 m/s²
- Air consumption at load (Normo): 29.8 1/sNl
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Height (H): 102 mm
- Length (L): 247.5 mm
- Width (W): 140 mm
- Side to Center: 34 mm
- Weight: 2.2 kg
- Max power: 1800 W
-
New Grade - 24 Months Warranty from purchase is available on this product.
