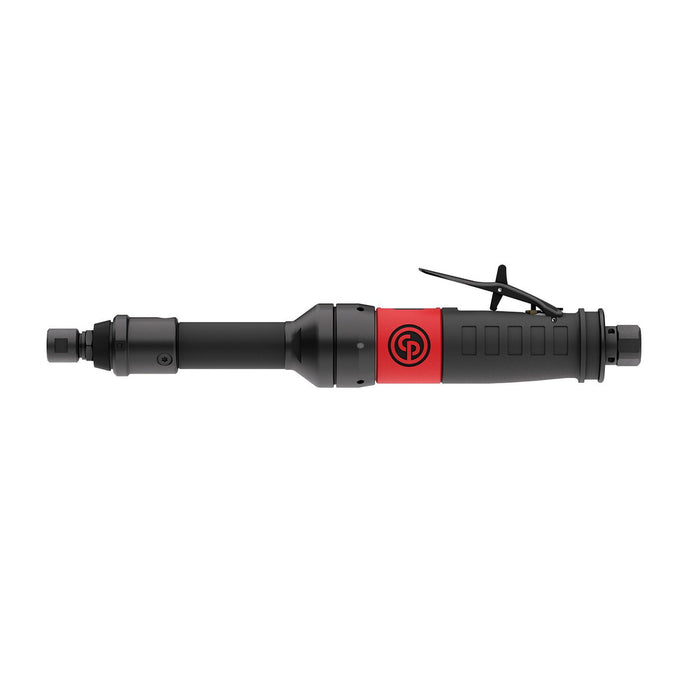

Chicago Pneumatic CP3550-120ES, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151602350
The Chicago Pneumatic CP3550-120ES delivers the power and precision that serious fabricators and metalworkers demand from a professional-grade air die grinder. Generating an impressive 1050 W of maximum power at 12000 RPM free speed, this pneumatic die grinder tackles demanding grinding, deburring, porting, and finishing tasks with consistent, reliable performance across extended work sessions. Its compact 1/4'' (6 mm) collet accepts a wide range of mounted points, burrs, and abrasive accessories, making it an exceptionally versatile addition to any workshop or production environment. Designed with ergonomics and operator comfort in mind, the CP die grinder measures just 365 mm in length and weighs a manageable 1.4 kg, significantly reducing fatigue during repetitive or overhead applications. The slim 52 mm height and 26 mm side-to-centre dimension allow confident access into tight recesses and restricted workspaces where larger tools simply cannot reach. The well-balanced housing sits comfortably in the hand, giving operators the control needed for precise material removal and fine surface finishing work. Built to Chicago Pneumatic's exacting quality standards, this air die grinder is the trusted choice for automotive bodyshops, aerospace maintenance facilities, metal fabrication workshops, and general engineering environments where durability and consistent output matter. Whether smoothing weld seams, cleaning castings, or shaping intricate components, the CP3550-120ES performs with the dependability professionals expect from the Chicago Pneumatic name.Product Feature: Industrial grade durability up to 1,000 hours between maintenance intervals Streamlined safety lever for operator safety. 1.5 hp (1,100 W) governed motor to maintain maximal abrasive speed Spindle lock button allows for fast carbide burr replacement to reduce tool downtime About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Height (H): 52 mm
- Length (L): 365 mm
- Side to Center: 26 mm
- Weight: 1.4 kg
- Max power: 1100 W
- Free Speed: 12000 rpm
- Air consumption at free speed: 8 l/s
- Air consumption at load: 26 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 88 dB(A)
- Sound Pressure: 77 dB(A)
- Vibration (m/s²): <2.5
- Angle Type: 90°
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson series 200 type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: Yes
- Spindle lock: Yes
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
