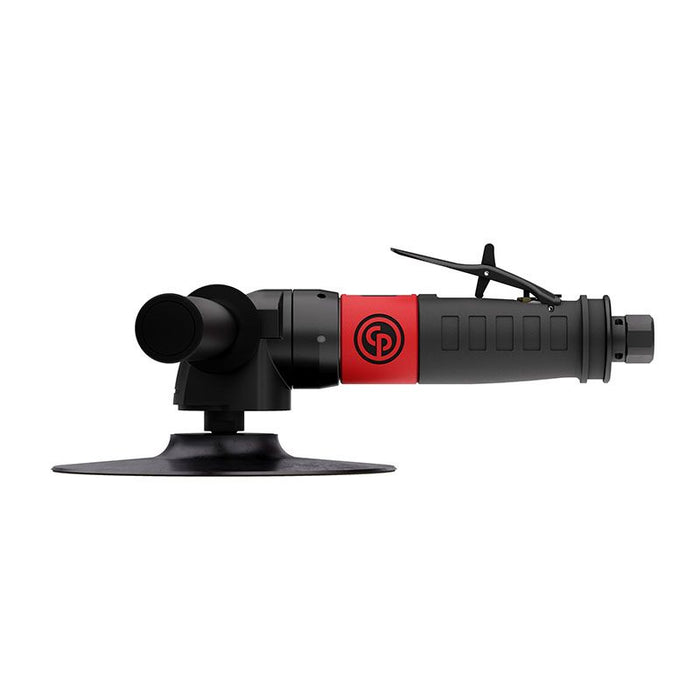

Chicago Pneumatic CP3550-120AB, 125mm Angle Air Sander
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151620370
The Chicago Pneumatic CP3550-120AB delivers the raw grinding and finishing power that demanding fabrication and metalworking professionals rely on every day. Designed around a robust 1,100 W motor spinning at a maximum of 12,000 RPM, this 125 mm angle air sander tears through material removal tasks with impressive efficiency, making it a dependable choice for workshops where downtime is not an option. The lightweight yet durable aluminium construction keeps operator fatigue to a minimum during extended use, while the ball governor maintains consistent speed under load - a critical feature when surface finish quality matters. Engineered as a high-performance pneumatic orbital sander, the CP3550-120AB accepts standard 5-inch circular abrasive pads, giving users access to a wide range of disc options for grinding, blending, and finishing across metal, composites, and painted surfaces. The rear exhaust configuration channels spent air away from the work surface and the operator, keeping the workspace cleaner and maintaining clear sightlines on intricate jobs. Whether used as a primary air sander on a fabrication line or paired with finer grits for surface preparation and refinishing, this tool handles both heavy stock removal and detail work with equal confidence. From automotive bodyshops and shipyards to structural steel fabrication, the Chicago Pneumatic CP3550-120AB proves its value wherever consistent, high-speed abrasive performance is non-negotiable. Product Features: Industrial-grade, 1.5 hp (1,100 W) motor with up to 1,000 hours between service intervals Streamlined safety lever for operator safety. Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics Spindle lock button for quick abrasive replacement reducing tool downtime Rotative Inlet Swivel allows easier handling and avoid air hose knots About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Auto balancer: No
- Circular Abrasive Pad Size: 5 in (125 mm)
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: 5/8-11 UNC
- Pad holes number: 0
- Rotative inlet: Yes
- Spindle lock: Yes
- Starting system: Safety lever
- Sound Power: 95 dB(A)
- Sound Pressure: 84 dB(A)
- Uncertainty vibration-K: 3.4 m/s²
- Air consumption at load: 17 l/s
- Air inlet thread size: 3/8 in
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diameter (16 ft hose length): 0.5 in
- Min hose diameter (5 m hose length): 13 mm
- Max Power: 1100 W
- Height (H): 94 mm
- Length (L): 249 mm
- Side to Center: 29 mm
- Weight: 1.5 kg
- Free Speed: 12000 rpm
- Air consumption at free speed: 26 l/s
- Overspeed shut-off: No
-
New Grade - 24 Months Warranty from purchase is available on this product.
