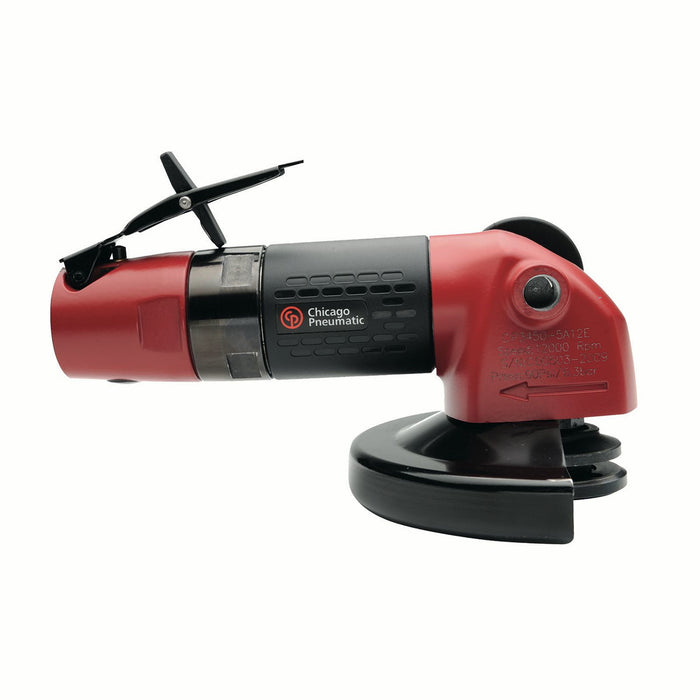

Chicago Pneumatic CP3450-12AB5, 5" Air Angle Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151604050
The Chicago Pneumatic CP3450-12AB5 delivers the power and precision professionals demand from a heavy-duty 5-inch pneumatic angle grinder, making it an outstanding addition to any fabrication or metalworking setup. Driven by an 810 W motor running at a free speed of 12,000 RPM, this chicago pneumatic air grinder offers the consistent rotational force needed to tackle aggressive grinding, cutting, and surface preparation tasks on ferrous and non-ferrous metals alike. Built to the exacting standards that have made chicago pneumatic grinder tools a trusted name across industrial workshops, the CP3450-12AB5 accepts 125 mm abrasive wheels and delivers reliable performance through its efficient air consumption of 18 litres per second at free speed. This ensures the tool maintains optimal disc velocity even under sustained workloads, reducing operator fatigue while improving output quality. The guard is fixed in a single position with zero degrees of rotation, providing a straightforward and consistent safety profile that suits high-volume production environments where setup time matters. Without an auto balancer, the design remains mechanically simple, contributing to long-term durability and ease of maintenance in demanding site conditions. As a capable cp die grinder and air angle grinder in one robust package, the CP3450-12AB5 is ideally suited to automotive bodywork, structural steel fabrication, pipeline maintenance, and general metalworking applications where dependable pneumatic grinding performance is non-negotiable.Product Feature: Industrial grade durability up to 1,000 hours between maintenance intervals Streamlined orientable safety lever for operator comfort Steel housing with an insulating composite over-housing for optimal handling Low profile angle head for better ergonomics Constant lubrication bevel gear design About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 12000 rpm
- Air consumption at free speed: 18 l/s
- Auto balancer: No
- Guard max rotation: 0 °
- Guard positions: 1
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: 5/8-11 UNC
- Rotative guard type: Screws
- Spindle lock: No
- Starting system: Safety lever
- Swiveling guard: No
- Wheel/Disc diameter (in): 5
- Wheel/Disc diameter (mm): 125
- Sound Power: 106 dB(A)
- Sound Pressure: 95 dB(A)
- Uncertainty vibration-K: 2.8 m/s²
- Vibration: 8.5 m/s²
- Air consumption at load: 17 l/s
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 13 mm
- Length (L): 231 mm
- Weight: 1.7 kg
- Max power: 810 W
-
New Grade - 24 Months Warranty from purchase is available on this product.
