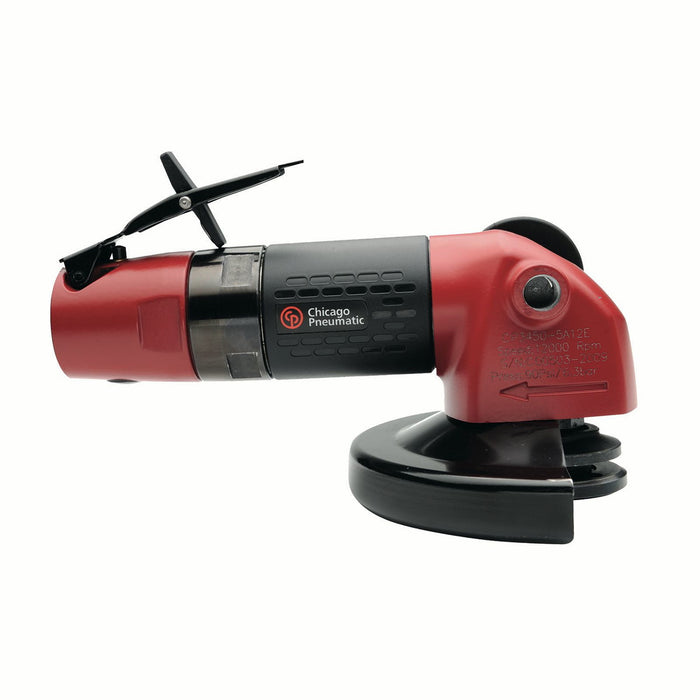

Chicago Pneumatic CP3450-12AA5, 5" Air Angle Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151604040
The Chicago Pneumatic CP3450-12AA5 delivers the kind of raw, dependable performance that demanding fabrication and metalworking environments require. Spinning at a free speed of 12000 RPM and drawing on 810 watts of power, this chicago pneumatic air grinder drives a 5-inch (125 mm) disc with the consistent force needed for heavy-duty grinding, cutting, and surface preparation tasks. Professionals who rely on a quality air angle grinder will immediately appreciate how this model balances power output with tool longevity, making it a trusted addition to any well-equipped workshop or production floor. Built around a pneumatic drive system with an air consumption of 18 l/s at free speed, the CP3450-12AA5 integrates smoothly with standard compressed air setups, ensuring maximum uptime and minimal maintenance overhead. The fixed guard configuration provides a stable, secure working position, keeping the operator protected throughout extended use cycles. As a chicago pneumatic grinder, it reflects the brand's long-standing commitment to precision-engineered pneumatic tooling that professionals can depend on shift after shift. The CP3450-12AA5 is ideally suited to metal fabrication shops, shipyards, structural steel contractors, and maintenance teams handling weld grinding, rust removal, and surface conditioning on ferrous and non-ferrous materials, where consistent speed and robust construction are non-negotiable requirements.Product Feature: Industrial grade durability up to 1,000 hours between maintenance intervals Streamlined orientable safety lever for operator comfort Steel housing with an insulating composite over-housing for optimal handling Low profile angle head for better ergonomics Constant lubrication bevel gear design About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 12000 rpm
- Air consumption at free speed: 18 l/s
- Auto balancer: No
- Guard max rotation: 0 °
- Guard positions: 1
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: M14x2
- Rotative guard type: Screws
- Spindle lock: No
- Starting system: Safety lever
- Swiveling guard: No
- Wheel/Disc diameter (in): 5
- Wheel/Disc diameter (mm): 125
- Sound Power: 106 dB(A)
- Sound Pressure: 95 dB(A)
- Uncertainty vibration-K: 2.9 m/s²
- Vibration: 8.1 m/s²
- Air consumption at load: 17 l/s
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 13 mm
- Length (L): 231 mm
- Weight: 1.7 kg
- Max power: 810 W
-
New Grade - 24 Months Warranty from purchase is available on this product.
