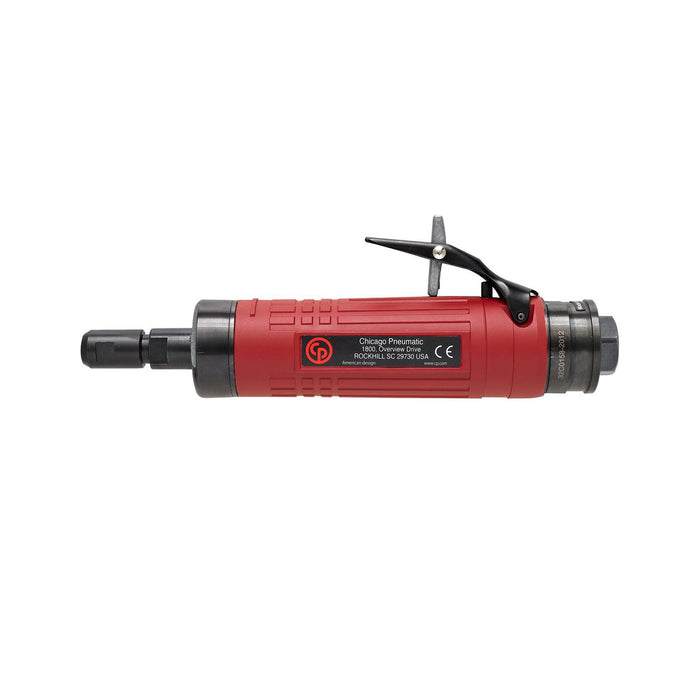

Chicago Pneumatic CP3119-22, 1/4"(6mm) Straight Air Die Grinder (CNOMO)
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151600410
Delivering exceptional power in a precisely engineered package, the Chicago Pneumatic CP3119-22 CNOMO air die grinder gives professionals a reliable edge when tackling demanding metalworking, grinding, and finishing tasks. Built to CNOMO standards, this pneumatic die grinder combines a robust 900 W maximum power output with a 22,000 RPM free speed, ensuring rapid material removal and smooth surface preparation across a wide range of applications. Weighing just 1 kg and measuring 222 mm in length, the CP3119-22 CNOMO strikes an ideal balance between power and manoeuvrability. The compact, pencil-style form factor makes it well suited to confined spaces and intricate work where larger tools simply cannot reach. Its 1/4'' (6 mm) collet accepts a broad selection of rotary burrs, mounted points, and grinding accessories, maximising versatility on the shop floor. Air consumption at free speed registers 13 l/s, reflecting an efficient design that works with standard workshop compressor setups without unnecessary strain on the air supply system. The tool's ergonomic profile reduces operator fatigue during extended use, while its CNOMO compliance ensures compatibility with recognised industrial specifications, making it a trusted choice in automotive, aerospace, and general fabrication environments. This cp die grinder is ideally suited to deburring castings, weld blending, porting cylinder heads, and precision finishing work where consistent performance and tool longevity are non-negotiable requirements.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Available with extended body with one-piece steel structure for high resistance Powerful 1.2 hp (900 W) governed motor Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 222 mm
- Weight: 1 kg
- Max power: 900 W
- Free Speed: 22000 rpm
- Air consumption at free speed: 13 l/s
- Air consumption at load: 18 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 92 dB(A)
- Sound Pressure: 81 dB(A)
- Vibration (m/s²): <2.5
- Angle Type: Straight
- Collet max capacity: 15/64 (6.0mm)
- Collet/Collet holder/Collet nut type: Cnomo type
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
