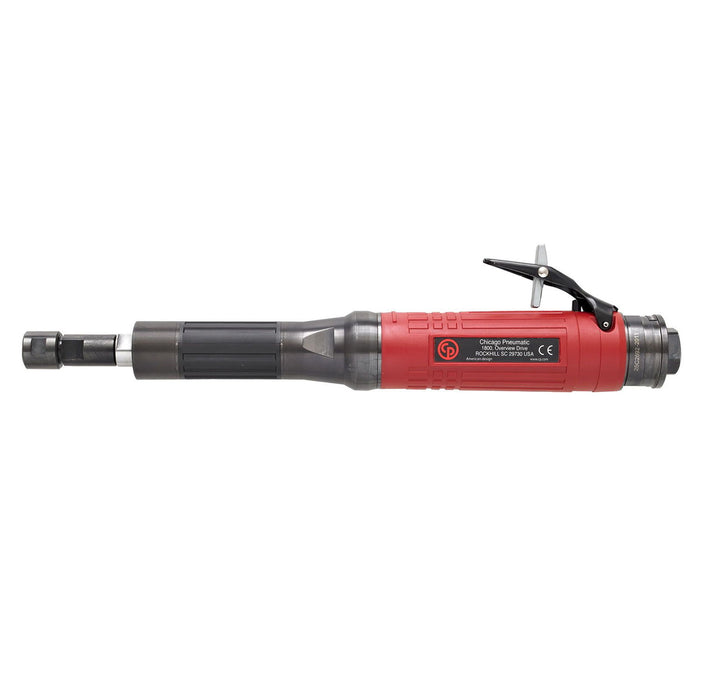

Chicago Pneumatic CP3119-15ES, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151602120
The Chicago Pneumatic CP3119-15ES is a professional-grade pneumatic die grinder engineered for demanding metalworking, fabrication, and finishing applications where precision and sustained power are non-negotiable. Delivering an impressive 900 W of maximum power at a free speed of 15,000 RPM, this air die grinder provides the consistent rotational force needed to tackle grinding, deburring, porting, and surface preparation with confidence across a full shift. Its 1/4'' (6 mm) collet accepts a wide range of mounted points, carbide burrs, and abrasive accessories, making it a genuinely versatile addition to any professional toolbox. At just 1.4 kg and measuring 361 mm in length, the CP die grinder strikes a practical balance between a compact pencil die grinder profile and the performance of a full-sized tool, reducing operator fatigue during prolonged use without sacrificing capability. The air consumption of 8 l/s at free speed means it integrates efficiently into existing compressed air systems found in automotive workshops, aerospace maintenance facilities, and heavy manufacturing environments. The extended body design also improves reach in confined spaces, giving operators greater access to recessed welds, ports, and intricate component geometries. Whether smoothing castings on an assembly line, preparing metal surfaces ahead of coating, or performing precision porting work on engine components, the Chicago Pneumatic CP3119-15ES delivers the reliability and raw performance that professional tradespeople depend on day after day.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Available with extended body with one-piece steel structure for high resistance Powerful 1.2 hp (900 W) governed motor Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 361 mm
- Weight: 1.4 kg
- Max power: 900 W
- Free Speed: 15000 rpm
- Air consumption at free speed: 8 l/s
- Air consumption at load: 17 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 92 dB(A)
- Sound Pressure: 81 dB(A)
- Vibration (m/s²): <2.5
- Angle Type: Straight
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson series 200 type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
