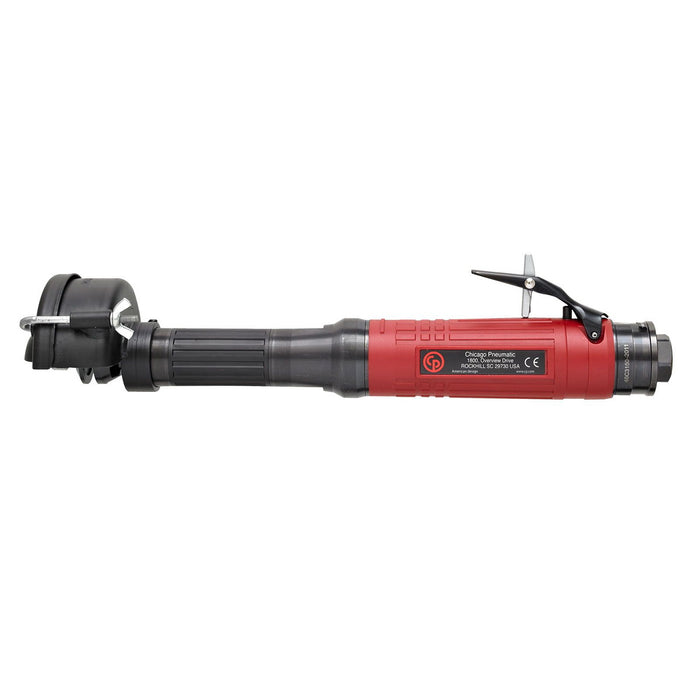

Chicago Pneumatic CP3119-12ES3X, 3" Air Straight Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151606030
The Chicago Pneumatic CP3119-12ES3X is a professional-grade 3-inch straight grinder engineered for demanding industrial grinding, deburring, and surface finishing applications. Delivering 900 W of pneumatic power at 12,000 RPM, this chicago pneumatic air grinder combines robust performance with a lightweight, ergonomically considered design that reduces operator fatigue during extended use. Constructed from a durable aluminium body with a composite over-sleeve, the CP3119-12ES3X offers an excellent strength-to-weight ratio while providing a secure, comfortable grip in challenging workshop environments. The ball governor ensures consistent speed regulation under load, maintaining optimal cutting and grinding performance without the need for constant manual adjustment. Rear exhaust directs spent air away from the workpiece and operator, keeping the working area cleaner and improving visibility during precision tasks. As a purpose-built chicago pneumatic die grinder, this model accepts standard 3-inch (75 mm) grinding accessories via its output spindle, making it compatible with a wide range of mounted points, carbide burrs, and abrasive wheels readily available in the market. The cp die grinder delivers the kind of reliable, repeatable performance that professional fabricators, maintenance engineers, and aerospace technicians depend on daily. This chicago pneumatic grinder is ideally suited to metal fabrication shops, automotive bodywork facilities, and heavy equipment maintenance operations where consistent power output, tool longevity, and precise material removal are non-negotiable requirements.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever and 1.2 hp (900 W) governed motor for operator safety Long steel housing with an insulating composite over-housing for operator comfort Superior ergonomics with 2-handed handling About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Auto balancer: No
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: 1/2-13 UNC
- Rotative guard type: Band
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
- Wheel/Disc diameter (in): 3
- Wheel/Disc diameter (mm): 75
- Wheel thickness (in): 1/2
- Wheel thickness (mm): 13
- Max power: 900 W
- Air consumption at load: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Free Speed: 12000 rpm
- Air consumption at free speed: 7 l/s
- Overspeed shut-off: No
- Length (L): 338 mm
- Weight: 1.7 kg
- Sound Power: 88 dB(A)
- Sound Pressure: 77 dB(A)
- Vibration (m/s²): <2.5
-
New Grade - 24 Months Warranty from purchase is available on this product.
