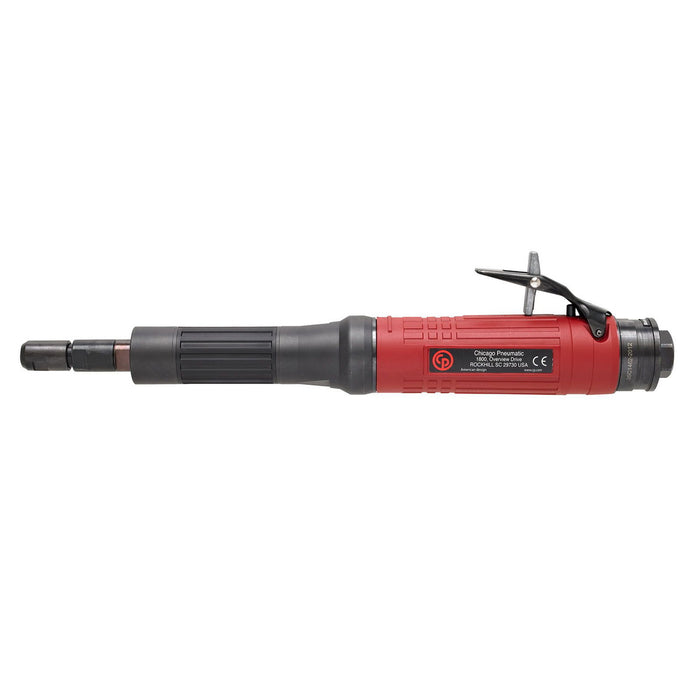

Chicago Pneumatic CP3119-12ES, 1/4"(6mm) Straight Air Die Grinder (CNOMO)
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151602250
The Chicago Pneumatic CP3119-12ES CNOMO delivers industrial-grade performance for professionals who demand precision and reliability in demanding grinding applications. Engineered to the internationally recognised CNOMO standard, this 1/4-inch (6 mm) air die grinder produces an impressive 900 W of maximum power, making it one of the most capable pneumatic die grinders in its class. Running at a free speed of 12,000 RPM, it provides the rotational consistency needed for accurate material removal, deburring, and surface finishing on ferrous and non-ferrous metals alike. Weighing just 1.4 kg and measuring 363 mm in length, the CP3119-12ES strikes an excellent balance between power and manoeuvrability, reducing operator fatigue during extended use without compromising on output. The ergonomic form factor suits both straight and angled access points, giving technicians greater flexibility across a wider range of workpiece geometries. Air consumption at free speed registers at 6 l/s, reflecting an efficient use of compressed air that keeps operating costs manageable in high-throughput environments. As a professional-grade Chicago Pneumatic die grinder built around the dependable cp die grinder platform, it integrates seamlessly into production lines and workshop setups where CNOMO compliance is a prerequisite. This tool is ideally suited for automotive manufacturing, aerospace fabrication, and heavy equipment maintenance, where consistent material removal and long-term durability are non-negotiable requirements.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Available with extended body with one-piece steel structure for high resistance Powerful 1.2 hp (900 W) governed motor Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 363 mm
- Weight: 1.4 kg
- Max power: 900 W
- Free Speed: 12000 rpm
- Air consumption at free speed: 5.66 l/s
- Air consumption at load: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 87 dB(A)
- Sound Pressure: 76 dB(A)
- Vibration (m/s²): <2.5
- Angle Type: Straight
- Collet max capacity: 15/64 (6.0mm)
- Collet/Collet holder/Collet nut type: Cnomo type
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
