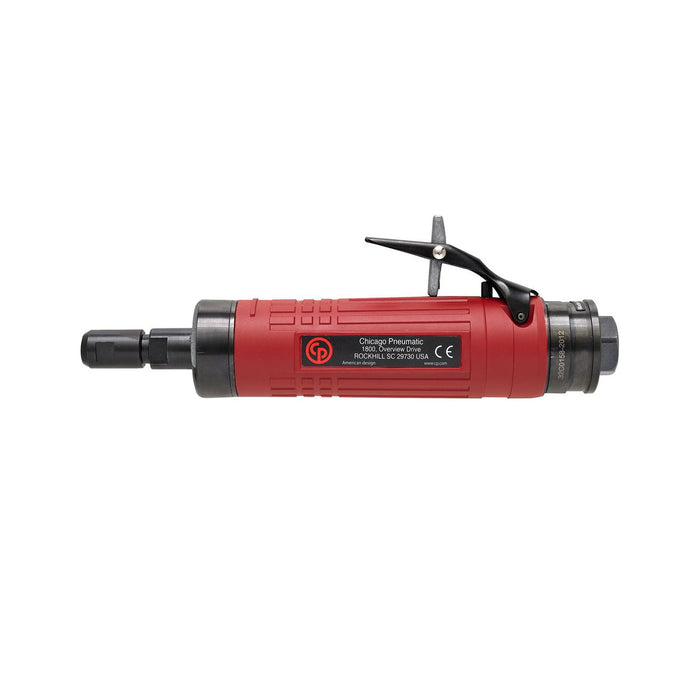

Chicago Pneumatic CP3119-12, 1/4"(6mm) Straight Air Die Grinder (CNOMO)
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151600380
Engineered for precision and power in demanding industrial environments, the Chicago Pneumatic CP3119-12 CNOMO delivers an impressive 900 W of pneumatic performance through a compact 222 mm body weighing just 1 kg, making it one of the most capable air die grinders in its class. Designed to the CNOMO standard for seamless compatibility across European manufacturing and automotive assembly lines, this pneumatic die grinder combines a free speed of 12,000 rpm with a 6 l/s air consumption rate at free speed, striking an optimal balance between raw cutting power and operational efficiency that professionals consistently demand. The 1/4 inch (6 mm) collet accepts a wide range of mounted points, burrs, and abrasive accessories, giving the operator versatility across grinding, deburring, porting, and surface preparation tasks. At just 1 kg, the CP die grinder significantly reduces operator fatigue during prolonged use, while the ergonomic housing provides a confident, controlled grip in tight access areas where larger tools simply cannot reach. The Chicago Pneumatic CP3119-12 CNOMO air die grinder meets CNOMO specifications, ensuring straightforward integration into existing pneumatic tooling systems without the need for additional adaptation. This tool is ideally suited for automotive bodyshops, aerospace fabrication facilities, metal fabrication workshops, and general engineering environments where consistent high-speed material removal, portability, and compliance with standardised tooling requirements are all essential daily priorities.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Available with extended body with one-piece steel structure for high resistance Powerful 1.2 hp (900 W) governed motor Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 222 mm
- Weight: 1 kg
- Max power: 900 W
- Free Speed: 12000 rpm
- Air consumption at free speed: 5.66 l/s
- Air consumption at load: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 86 dB(A)
- Sound Pressure: 75 dB(A)
- Vibration (m/s²): <2.5
- Angle Type: Straight
- Collet max capacity: 15/64 (6.0mm)
- Collet/Collet holder/Collet nut type: Cnomo type
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
