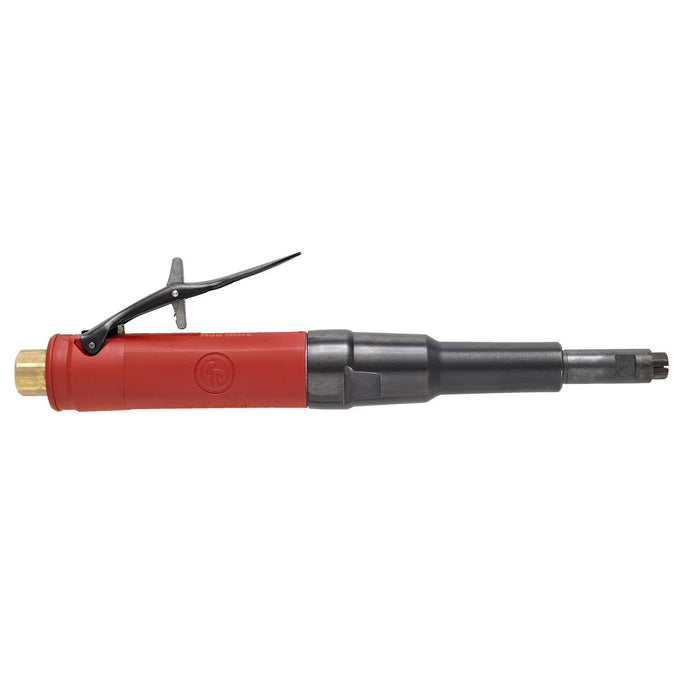

Chicago Pneumatic CP3019-20ES, 1/4"(6mm) Straight Air Die Grinder (CNOMO)
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151602210
The Chicago Pneumatic CP3019-20ES CNOMO is a precision-engineered 1/4-inch air die grinder built for professionals who demand consistent performance in demanding industrial environments. Delivering an impressive 375 W of maximum power at 20,000 RPM free speed, this pneumatic die grinder offers the rotational force needed to handle aggressive material removal, precision grinding, and surface finishing with confidence. At just 0.57 kg and measuring 249 mm in length, it strikes an ideal balance between a compact pencil die grinder form factor and the robust output of a full-specification tool, reducing operator fatigue during extended production runs. Air consumption at free speed sits at 3.3 l/s, making the CP3019-20ES CNOMO efficient and well-suited for integration into busy workshop airline systems without placing excessive demand on compressor output. The CNOMO interface ensures seamless compatibility with standardised European tooling setups, giving facilities managers and engineers the flexibility they need when specifying air die grinders across mixed fleets. The ergonomic slimline body allows for precise control in tight access areas, and the tool's overall build quality reflects Chicago Pneumatic's reputation for durability in heavy-use settings. This cp die grinder is an excellent choice for automotive bodywork, aerospace component finishing, weld seam dressing, and general fabrication tasks where accuracy, power-to-weight ratio, and reliable pneumatic performance are non-negotiable requirements.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Powerful 0.5 hp (375 W) governed motor ensures safety Compact body with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 249 mm
- Weight: 0.57 kg
- Max power: 375 W
- Free Speed: 20000 rpm
- Air consumption at free speed: 3.59 l/s
- Air consumption at load: 8.5 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.31 in
- Min hose diam (5 m hose length): 8 mm
- Sound Power: 86 dB(A)
- Sound Pressure: 75 dB(A)
- Uncertainty vibration-K: 0.9 m/s²
- Vibration: 2.9 m/s²
- Angle Type: Straight
- Collet max capacity: 6mm (only for Die Grinders)
- Collet/Collet holder/Collet nut type: Cnomo type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
