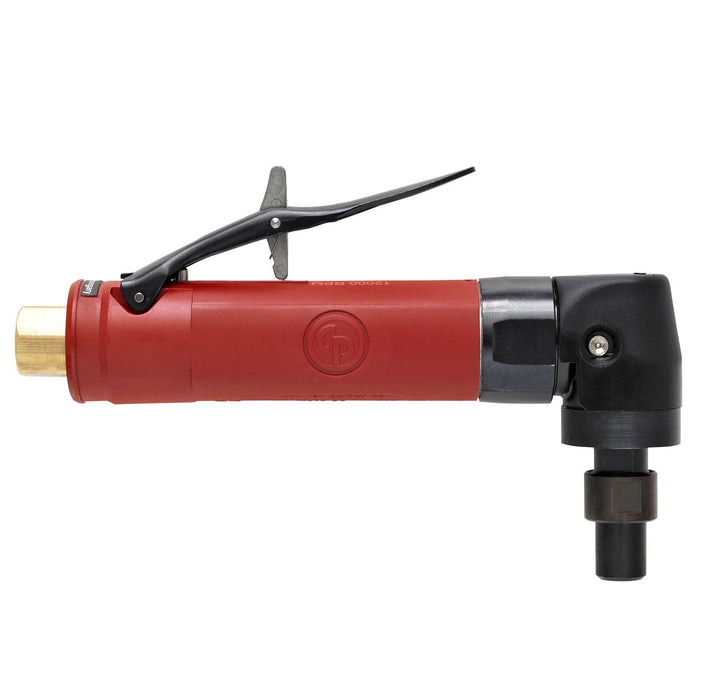

Chicago Pneumatic CP3019-20AC, 1/4"(6mm) Angle Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151604080
The Chicago Pneumatic CP3019-20AC is a precision-engineered 1/4'' angle die grinder built for professionals who demand reliable performance in tight spaces and demanding environments. Delivering 375 W of maximum power at a blistering 20,000 RPM free speed, this compact pneumatic die grinder handles grinding, deburring, and surface finishing with exceptional control and efficiency. Weighing just 0.51 kg and measuring a slim 216 mm in length, the CP3019-20AC is one of the most ergonomically balanced air die grinders in its class. Its lightweight aluminium construction reduces operator fatigue during extended use, making it a go-to choice for technicians working on precision fabrication, automotive bodywork, and metal finishing. The 6 mm collet accepts a wide range of rotary burrs, mounted points, and abrasive accessories, giving users tremendous versatility across applications. Air consumption at free speed sits at 5.3 l/s, reflecting the efficient internal design that Chicago Pneumatic is known for across its range of cp die grinders. The smooth throttle response and consistent torque output ensure accurate material removal without chatter or vibration that could compromise surface quality. Whether used in aerospace maintenance, die and mould work, or general metal fabrication, the Chicago Pneumatic CP3019-20AC delivers the power-to-weight ratio and durability that professionals depend on when precision and productivity matter most.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Powerful 0.5 hp (375 W) governed motor ensures safety Compact body with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 216 mm
- Weight: 0.51 kg
- Max power: 375 W
- Free Speed: 20000 rpm
- Air consumption at free speed: 5.3 l/s
- Air consumption at load: 9.4 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.31 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 93 dB(A)
- Sound Pressure: 82 dB(A)
- Uncertainty vibration-K: 3.4 m/s²
- Vibration: 4.3 m/s²
- Angle Type: 90°
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson series 300 type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
