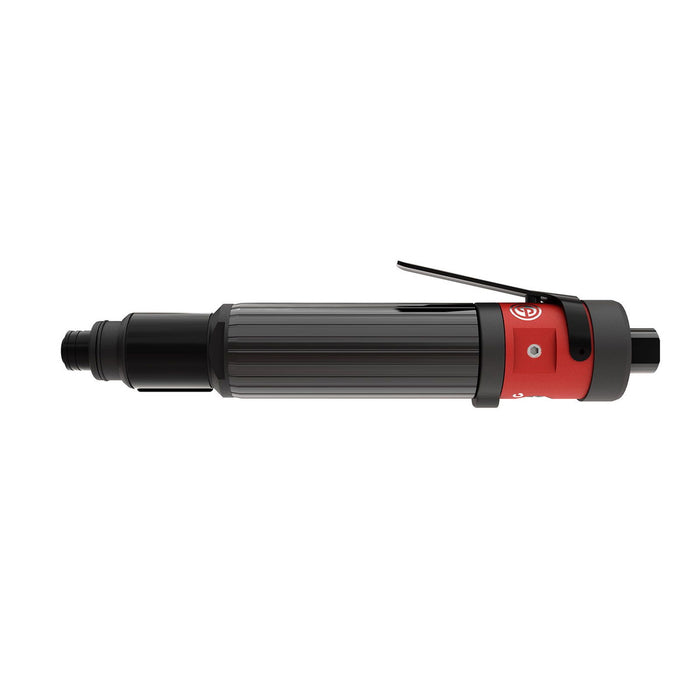

Chicago Pneumatic CP2824, 1/4" Hex Air Screwdriver
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151630100
Delivering consistent, repeatable fastening results on the most demanding assembly lines, the Chicago Pneumatic CP2824 is a precision-engineered pneumatic screwdriver with torque control designed for professionals who cannot afford to compromise on quality. Built around an automatic shut-off pneumatic valve mechanism, this air torque screwdriver disengages the drive the instant the preset torque is reached, protecting fasteners from over-tightening and reducing the risk of component damage or costly rework. The CP2824 operates across a torque range of 0.5 Nm to 1.6 Nm in the forward direction, making it exceptionally well suited to light assembly tasks where fine torque accuracy is paramount. Its 1/4'' hex straight configuration ensures compatibility with a wide selection of standard bits, while the compact straight-body design gives operators excellent visibility and comfortable access in confined or precision-critical workspaces. As a pneumatic torque driver, the CP2824 benefits from the inherent reliability and power efficiency of air-driven tooling, delivering consistent output across extended production runs without the heat build-up associated with electric alternatives. The shut-off system requires no manual adjustment mid-task, streamlining workflow and supporting greater throughput on the line. This Chicago Pneumatic air screwdriver is the ideal choice for electronics assembly, automotive interior fitting, and small component manufacturing where controlled, accurate torque application is essential to product integrity and assembly compliance.Product Feature: Accurate and durable shut-off clutch for various fastening Low noise level Robust aluminium body, even for heavy duty applications Convenient progressive trigger and one-hand reverse button for ergonomic handling About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max torque in forward: 1.6 Nm
- Min torque in forward: 0.5 Nm
- Torque Control System: Shut-off-pneumatic valve
- Adjustment: Key
- Body: Aluminium
- Clutch housing: Steel
- Clutch Type: Ball clutch
- Handle type: Pistol
- Main Material type: Aluminium
- Output drive size (in): 1/4
- Output drive type: Hex
- Output retainer type: Quick change
- Reversible: Yes
- Starting system: Lever
- Free Speed: 1500 rpm
- Air consumption at free speed: 5.7 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.31 in
- Min hose diam (5 m hose length): 8 mm
- Height (H): 28 mm
- Length (L): 222 mm
- Width (W): 28 mm
- Weight: 0.9 kg
- Sound Pressure: 73 dB(A)
- Vibration (m/s²): <2.5
-
New Grade - 24 Months Warranty from purchase is available on this product.
