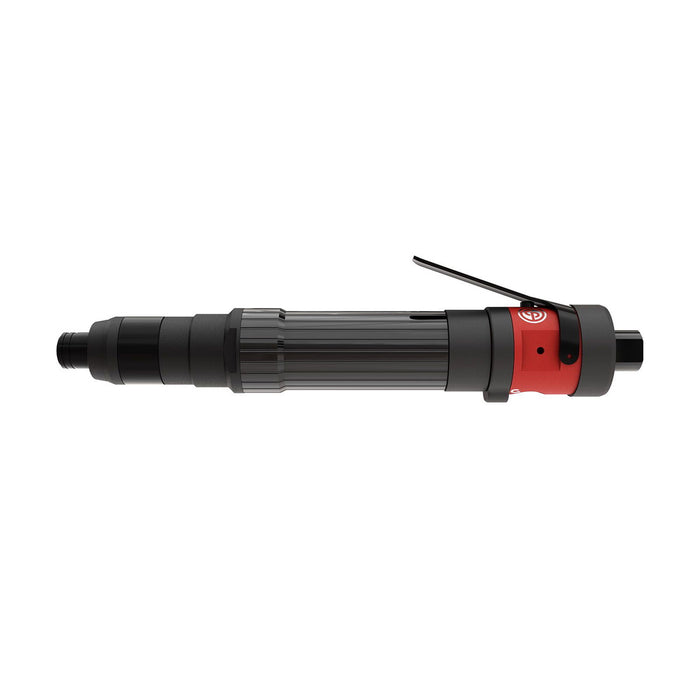

Chicago Pneumatic CP2822, 1/4" Hex Air Screwdriver
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151630090
Engineered for precision-driven assembly work, the Chicago Pneumatic CP2822 delivers consistent, repeatable fastening performance across a torque range of 2 to 6 Nm, making it an ideal pneumatic torque screwdriver for production lines and workshop environments where accuracy matters. The non shut-off clutch torque control system, adjusted via a dedicated key, allows operators to dial in the exact output needed for each application, reducing the risk of over-torquing sensitive components without slowing down workflow. Built around a 1/4'' hex drive interface, this air torque screwdriver accepts a wide range of standard screwdriver bits, giving technicians the versatility to switch between fastener types quickly and efficiently. Its straight cushion grip body style provides a comfortable, secure hold during extended use, reducing operator fatigue on high-volume tasks. The cushion grip also absorbs vibration, helping to protect hands and wrists over long shifts. As a compact and reliable pneumatic screwdriver with torque control, the CP2822 connects to any standard compressed air supply and requires minimal maintenance to keep it performing at its best. Whether it is being used on electronics assembly, automotive trim components, or light-duty manufacturing processes, this air torque driver from Chicago Pneumatic brings professional-grade control and durability to every fastening task. Available now at MachineRefurb.com, it is a dependable choice for teams that demand quality and consistency on the job.Product Feature: Reliable cushion clutch for various fastening applications Keyless quick torque setting Robust aluminium body and clutch housing, even for heavy duty applications Rubber grip and one-hand reverse button for operator comfort About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max torque in forward: 6 Nm
- Min torque in forward: 2 Nm
- Torque Control System: Non shut-off-clutch
- Adjustment: Key
- Body: Aluminium
- Clutch housing: Steel
- Clutch Type: Cushion clutch
- Handle type: Pistol
- Main Material type: Aluminium, Composite over-sleeve
- Output drive size (in): 1/4
- Output drive type: Hex
- Output retainer type: Quick change
- Reversible: Yes
- Starting system: Push start
- Free Speed: 1300 rpm
- Air consumption at free speed: 4 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.25 in
- Min hose diam (5 m hose length): 6.3 mm
- Height (H): 37 mm
- Length (L): 250 mm
- Width (W): 37 mm
- Weight: 0.9 kg
- Sound Power: 94 dB(A)
- Sound Pressure: 83 dB(A)
- Vibration (m/s²): <2.5
-
New Grade - 24 Months Warranty from purchase is available on this product.
