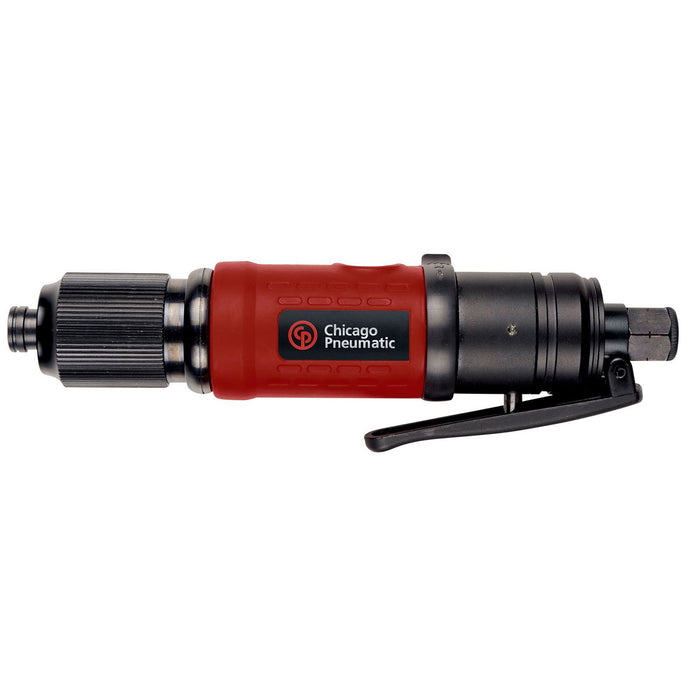

Chicago Pneumatic CP2623, 1/4" Hex Air Screwdriver
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151922623
The Chicago Pneumatic CP2623 delivers precise, repeatable fastening performance in a compact straight-body design that keeps production lines moving without compromise. Built for operators who demand consistent torque output in tight assembly environments, this 1/4-inch hex pneumatic torque screwdriver bridges the gap between speed and control across a wide range of light industrial applications. Engineered with a non shut-off clutch torque control system, the CP2623 allows users to dial in torque between 1.5 Nm and 5.5 Nm through simple rotational adjustment, making it a genuinely versatile air torque screwdriver for mixed fastener work. The cushion reverse mechanism absorbs the reactive forces that cause operator fatigue during extended shifts, while the straight inline configuration keeps the tool balanced and easy to manoeuvre within confined spaces or along production jigs. The 1/4-inch hex drive accepts standard screwdriver bits, reducing tooling costs and keeping changeovers quick. As a pneumatic torque driver, the CP2623 is designed to integrate smoothly into existing compressed air systems without requiring complex setup, and its durable construction reflects Chicago Pneumatic's long-standing reputation for reliability in demanding environments. This air screwdriver is ideally suited to electronics assembly, automotive trim fitting, appliance manufacturing, and any fastening task where controlled torque delivery and low operator fatigue are critical priorities throughout a full working day.Product Feature: Reliable cushion clutch for various fastening applications Keyless quick torque setting, color rings for torque identification Robust aluminium body with rubber grip, even for heavy duty applications Convenient straight push-to-start operation and one-hand reverse button Low noise and vibration for operator comfort About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max torque in forward: 5.5 Nm
- Min torque in forward: 1.5 Nm
- Torque Control System: Non shut-off-clutch
- Adjustment: Rotative ring
- Body: Steel
- Clutch housing: Steel
- Clutch Type: Cushion clutch
- Handle type: Straight handle
- Output drive size (in): 1/4
- Output drive type: Hex
- Output retainer type: Quick change
- Reversible: Yes
- Starting system: Lever
- Free Speed: 1700 rpm
- Air consumption at free speed: 13 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Length (L): 207 mm
- Weight: 0.8 kg
- Sound Power: 89 dB(A)
- Sound Pressure: 78 dB(A)
- Vibration (m/s²): <2.5
-
New Grade - 24 Months Warranty from purchase is available on this product.
