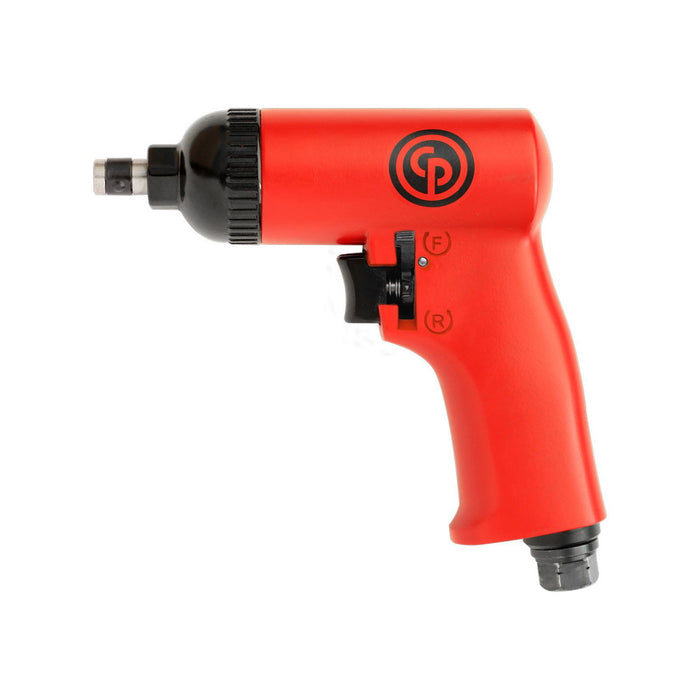

Chicago Pneumatic CP2141, 1/4" Hex Air Screwdriver
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941021410
The Chicago Pneumatic CP2141 delivers reliable, consistent fastening performance that keeps production lines moving without compromise. Designed for demanding assembly environments, this 1/4'' hex pneumatic impact screwdriver combines a lightweight aluminium body with a powerful output range of 10 to 24 Nm, giving operators the versatility to handle a broad spectrum of fastening tasks with confidence. As a precision-engineered pneumatic torque screwdriver, the CP2141 features a non shut-off clutch torque control system that allows users to set and maintain consistent torque within the working range, reducing the risk of over-tightening and protecting sensitive components. The robust aluminium construction keeps the tool light in the hand during extended use, helping to reduce operator fatigue across long shifts without sacrificing durability. The 1/4'' hex drive accepts standard screwdriver bits, making it straightforward to swap between applications and keep downtime to a minimum. As a high-performance air torque screwdriver, the CP2141 integrates smoothly into existing pneumatic supply systems, requiring no complex setup and offering immediate, repeatable results straight out of the box. This air screwdriver is ideally suited to automotive assembly, electronics manufacturing, and general industrial fastening where controlled torque application is essential. Whether used in a dedicated production cell or a flexible assembly station, the Chicago Pneumatic CP2141 is a dependable choice for teams who need a capable pneumatic torque driver they can rely on shift after shift.Product Feature: Double rocking dog clutch and metal housing for a good durability Reversible one-hand button for better ease of use Low noise level for operator comfort Compact design for maximum accessibility in tight spaces About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max torque in forward: 24 Nm
- Min torque in forward: 10 Nm
- Torque Control System: Non shut-off-clutch
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch Type: Impact clutch (Rocking Dog)
- Handle type: Pistol
- Main Material type: Aluminium
- Output drive size (in): 1/4
- Output drive type: Hex
- Output retainer type: Ball detent
- Reversible: Yes
- Starting system: Trigger
- Free Speed: 13000 rpm
- Air consumption at free speed: 8.5 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Height (H): 150 mm
- Length (L): 143 mm
- Weight: 0.87 kg
- Sound Power: 88 dB(A)
- Sound Pressure: 77 dB(A)
- Uncertainty vibration-K: 2.1 m/s²
- Vibration: 5.3 m/s²
-
New Grade - 24 Months Warranty from purchase is available on this product.
