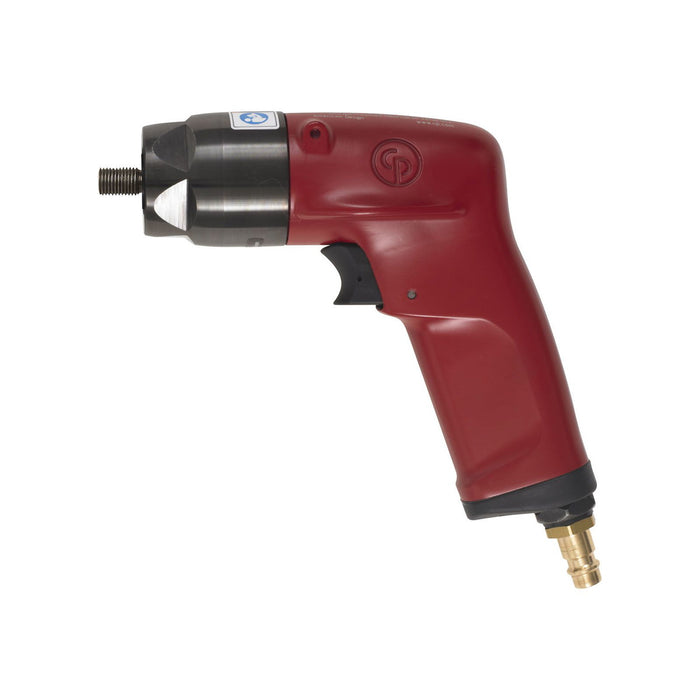

Chicago Pneumatic CP1117P60, 3/8" Air Drill - Without Chuck
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151580200
The Chicago Pneumatic CP1117P60 pistol drill delivers a dependable combination of precision and power for professionals who demand consistent performance in demanding workshop and industrial environments. Built around a robust aluminium construction, this cp air drill offers an impressive 3.4 Nm of torque through its 3/8-inch (10 mm) chuck capacity, making it ideally suited to a wide range of drilling and fastening applications where control and durability are non-negotiable. Designed without a chuck, the CP1117P60 arrives ready for operators who prefer to fit their own preferred chuck assembly, offering added flexibility across varied job site requirements. The classic pistol handle configuration promotes a natural, ergonomic grip that reduces operator fatigue during extended use, while the lightweight aluminium body keeps overall tool weight to a minimum without sacrificing structural integrity. As a chicago pneumatic air drill, it benefits from the brand's longstanding reputation for engineering quality, ensuring reliable air-powered performance across thousands of operating cycles. The chicago pneumatic drill connects effortlessly to standard workshop compressed air supplies, delivering smooth, consistent rotational speed that supports clean, accurate drilling in metal, wood, and composite materials alike. This cp drill is the go-to choice for automotive technicians, maintenance engineers, and production line operatives who need a trusted, compact pistol drill capable of handling repetitive daily tasks with ease and efficiency.Product Feature: High power 1hp (750W) with excellent control by teasing throttle handle high Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations High quality industrial pistol drill with keyless, without chuck or Jacobs industrial keyed chuck 3/8 '(10 mm) to 1/2' (13 mm) About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 3/8
- Chuck max capacity (mm): 10
- Chuck type: No chuck
- Handle type: Pistol
- Main Material type: Aluminium
- Reversible: No
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 94 dB(A)
- Sound Pressure: 83 dB(A)
- Air consumption at load: 14 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 750 W
- Stall torque: 3.4 Nm
- Free Speed: 6000 rpm
- Air consumption at free speed: 16 l/s
- Length (L): 180 mm
- Weight: 0.99 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
