Chicago Pneumatic CP1117P26, 3/8" Air Drill - ATEX
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151580370

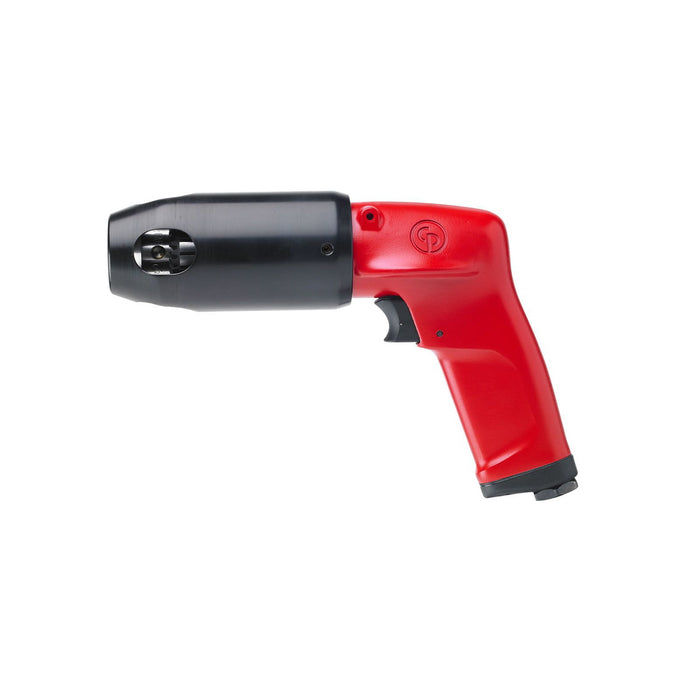

The Chicago Pneumatic CP1117P26 ATEX pistol drill delivers reliable, safe drilling performance in hazardous environments where ignition risks demand the highest level of equipment compliance. Built to ATEX certification standards, this chicago pneumatic air drill is engineered for use in explosive atmospheres including oil and gas facilities, chemical plants, and other Zone 1 and Zone 2 classified workspaces where standard pneumatic tools are simply not permitted. Constructed from lightweight yet robust aluminium, the CP1117P26 offers excellent durability without adding unnecessary fatigue during extended operations. The pistol-grip handle provides intuitive control and comfortable handling, making it well suited to both precision work and repetitive drilling tasks on the production floor. At 6.3 Nm of torque, this atex rated drill generates enough power to handle a wide range of drilling applications efficiently and consistently. The 3/8-inch keyed chuck accepts drill bits up to 10 mm in diameter, offering versatility across common industrial drilling tasks while the keyed mechanism ensures a secure, slip-free bit retention that professionals in demanding environments rely upon. As a genuine cp air drill from Chicago Pneumatic, it benefits from the brand's long-standing reputation for quality engineering and parts availability, making sourcing replacement components straightforward. This ATEX drill is the ideal choice for maintenance engineers and contractors working in petrochemical, pharmaceutical, and offshore industries where safety compliance and consistent pneumatic performance are equally non-negotiable.Product Feature: High power 1hp (750W) with excellent control by teasing throttle handle high Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations High quality industrial pistol drill with keyless, without chuck or Jacobs industrial keyed chuck 3/8 '(10 mm) to 1/2' (13 mm) About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 3/8
- Chuck max capacity (mm): 10
- Chuck type: Keyed
- Handle type: Pistol
- Main Material type: Aluminium
- Reversible: No
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 95 dB(A)
- Sound Pressure: 84 dB(A)
- Uncertainty vibration-K: 1.7 m/s²
- Air consumption at load: 14 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 750 W
- Stall torque: 6.3 Nm
- Free Speed: 2600 rpm
- Air consumption at free speed: 16 l/s
- Height (H): 147.8 mm
- Length (L): 220.1 mm
- Width (W): 58.6 mm
- Weight: 2.2 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
