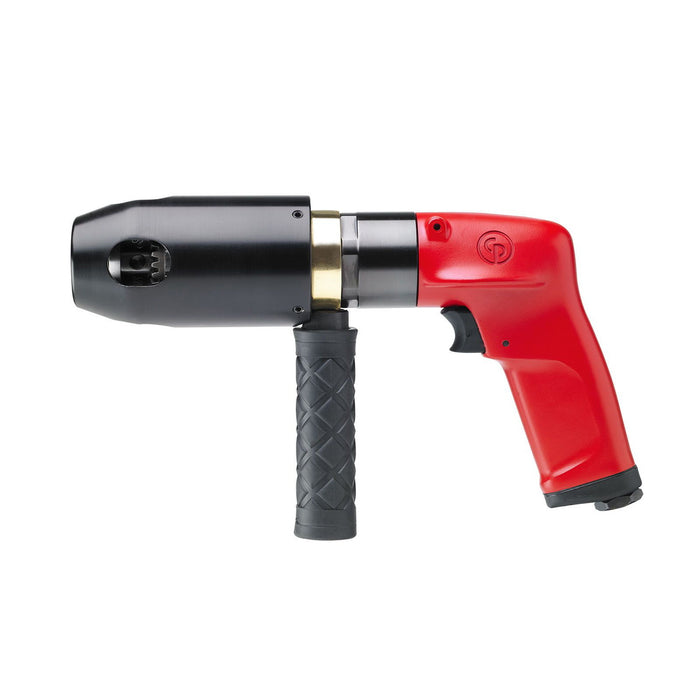

Chicago Pneumatic CP1117P05, 1/2" Air Drill - ATEX
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151580350
The Chicago Pneumatic CP1117P05 ATEX delivers the precision and safety assurance that demanding industrial environments require, combining certified explosion-proof performance with the responsive handling professionals depend on for consistent, accurate drilling. Engineered for use in hazardous locations where flammable gases or dust may be present, this ATEX rated drill meets the rigorous certification standards that make it a trusted choice across oil and gas, chemical processing, and offshore applications. Built from a lightweight yet durable aluminium housing, this Chicago Pneumatic air drill balances extended comfort with the robustness expected from a professional-grade pneumatic tool. The pistol-grip handle provides excellent control and directional accuracy, reducing operator fatigue during repetitive drilling tasks. With a maximum chuck capacity of 1/2 inch (13 mm) and a reliable keyed chuck design that ensures secure bit retention, the CP air drill delivers consistent performance across a wide range of drill bit sizes and materials. Producing a working torque of 30 Nm, this ATEX drill offers ample power for drilling through steel, aluminium, and composite materials commonly encountered in heavy industry. The air-powered motor eliminates ignition risks associated with electric tools, making the cp 1/2 air drill an essential addition to any safety-critical toolkit. From structural fabrication in classified zones to maintenance operations aboard offshore platforms, the CP1117P05 ATEX provides the reliability, certification compliance, and practical versatility that hazardous-area professionals cannot afford to be without.Product Feature: High power 1hp (750W) with excellent control by teasing throttle handle high Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations High quality industrial pistol drill with keyless, without chuck or Jacobs industrial keyed chuck 3/8 '(10 mm) to 1/2' (13 mm) About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 1/2
- Chuck max capacity (mm): 13
- Chuck type: Keyed
- Handle type: Pistol
- Main Material type: Aluminium
- Reversible: No
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 95 dB(A)
- Sound Pressure: 84 dB(A)
- Uncertainty vibration-K: 2 m/s²
- Air consumption at load: 14 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 750 W
- Stall torque: 30 Nm
- Free Speed: 500 rpm
- Air consumption at free speed: 16 l/s
- Height (H): 150.9 mm
- Length (L): 268.3 mm
- Width (W): 61.8 mm
- Weight: 2.25 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
