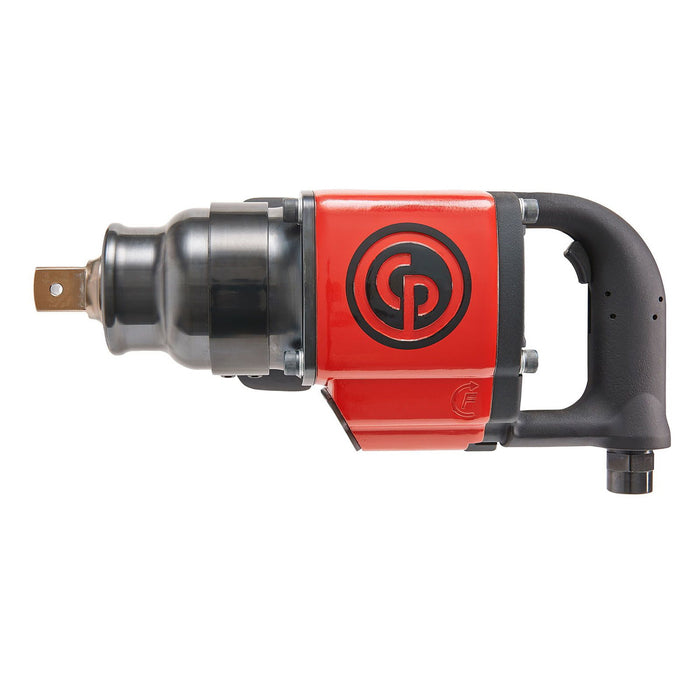

Chicago Pneumatic CP0611-D28H, 1" D-Handle Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151590160
Built for the most demanding heavy-duty applications, the Chicago Pneumatic CP0611-D28H delivers the raw power and precision that industrial professionals depend on when standard tools simply won't cut it. This 1-inch drive D-handle air impact wrench produces an exceptional maximum working torque of 2440 Nm in forward and a formidable 3790 Nm in reverse, making it one of the most capable chicago pneumatic impact wrench models available for tackling seized fasteners and high-torque assemblies with confidence. Operating at up to 3500 RPM, the CP0611-D28H ensures rapid and efficient fastener removal and installation, reducing downtime across demanding workshop and field environments. The ergonomic D-handle configuration provides superior grip stability and operator control during extended use, while the robust air inlet design supports consistent airflow and sustained performance under continuous load. As a cp impact wrench engineered without torque limiting, it delivers its full power output precisely when needed, giving technicians unrestricted capability at every stage of the job. Constructed to Chicago Pneumatic's renowned standards for durability, this air impact wrench is ideally suited for heavy vehicle maintenance, mining equipment servicing, agricultural machinery repair, and large-scale construction applications where maximum torque output and long-term reliability are non-negotiable. Whether working in a professional garage or on-site in challenging conditions, this tool consistently performs where results matter most.Product Feature: Reliable 2 jaws clutch mechanism for hard and soft joint applications Durable lightweight aluminium body Robust steel clutch housing for extreme durability 2-jaw clutch ensures progressive torque increase for high torque bolt disassembly applications with minimal vibration 360° rotatable side handle offers excellent grip for all applications About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 2440 Nm
- Max torque reverse: 3790 Nm
- Min working torque fwd: 1220 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 1 in
- Min hose diam (5 m hose length): 16 mm
- Sound Pressure: 99 dB(A)
- Uncertainty vibration-K: 4.1 m/s²
- Free Speed: 3500 rpm
- Air consumption at free speed: 55 l/s
- Length (L): 360 mm
- Power weight ratio: 360 Nm/kg
- Side to Center: 46 mm
- Weight: 10.4 kg
- Blow per minute: 1020
- Body: Aluminium
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: 2-jaws
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
