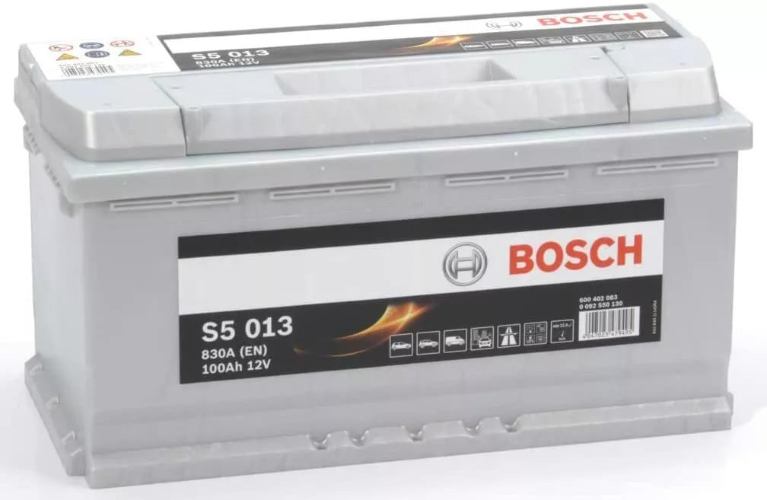

Bosch S5 013 Car Battery 12V 100Ah Type 019 - 600402083, 5 Years Warranty

Original price £121.95 - Original price £121.95
Original price
£121.95
£121.95 - £121.95
Current price £121.95
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: S5013

    High-demand modern vehicles place considerable strain on battery systems, with multiple ECUs, infotainment units, and driver-assistance technologies drawing continuous power even at idle. The Bosch S5 013 is engineered to meet these requirements, delivering 830A cold cranking amps and 100Ah capacity at 12V within a robust, maintenance-free construction suited to passenger cars with elevated electronic loads. Manufactured by Bosch to OEM-grade standards, the S5 range features a flushed-top casing design that minimises the risk of acid leakage and simplifies under-bonnet maintenance. The plate and separator technology is optimised for reliable starting performance across a broad temperature range, ensuring dependable power delivery in line with original equipment specifications." The S5 013 measures 353mm x- 175mm - 190mm (L x- W x- H) and weighs approximately 22.1kg. It uses a Type 1 terminal configuration with positive on the left (polarity 0) and is secured via hold-down type B13. Cross-references the widely used Type 019 fitment. Not suitable for start-stop vehicles. "Also available in the Bosch S5 range: S5007, S5008, S5010, S5011, and S5015, covering a broad spread of vehicle fitments and capacity requirements. This battery is supplied with a 5-year warranty, providing long-term assurance for professional installers and fleet operators alike. . The Bosch S5 Battery is the powerhouse for recent car models with high electronic demand that provides optimum starting power and long service life, flushed tops for minimized risk of acid leakage, and dependable power in accordance with OEM requirements. It uses full frame grid technology, highly protective pocket separators and robust connections inside to extend lifetime and maximize reliability. Key Feature: Backed by 5-year warranty for reliable use and dependable performance. Product Group: 2602, BOSCH S5 CAR BATTERY, purpose-built for dependable performance in the intended application. Engineered as a Lead acid battery, delivering consistent, reliable operation in daily use. Manufactured by Bosch, a trusted name in automotive batteries, known for dependable quality. Weighs 22.1 kg (48.6 lb) balancing power and manageability for easier installation and handling. OEM-style fitment supports straightforward replacement and proper mounting. 12V system compatible with standard vehicle electrical requirements. Start stop Suitable - No. Fitment to a Start stop vehicle can cause vehicle faults and premature battery failure. Compatibility: Suited for passenger cars, balancing reliable cold-cranking performance with long service life for daily use. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Lead acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Bosch
    • Voltage: 12V
    • Capacity AH (C20): 100Ah
    • Cold Cranking Amps (EN): 830A
    • L x- W x- H: 353mm x- 175mm x- 190mm
    • Warranty period: 5 Years
    • Weight (Kg): 22.0527777777778
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 353
    • Width (mm): 175
    • Height Inc. Terminal (mm): 190
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B13
    • Case Size:
    • ETN Number: 600402083
    • TTNR: 0092S50130
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What are the dimensions of the Bosch S501-3battery?
ANS- The Bosch S501-3measures 353mm in length, 175mm in width, and 190mm in height including the terminal. It weighs approximately 22.1kg.

Q2- What is the cold cranking amp (CCA) rating of the Bosch S5013?
ANS- The Bosch S501-3delivers 830A cold cranking amps (EN), making it suitable for large-displacement engines and vehicles with high electrical demand.

Q3- Is the Bosch S501-3compatible with start-stop vehicles?
ANS- No. The S501-3is a standard flooded lead-acid battery and is not suitable for use in start-stop vehicles. For start-stop applications, an AGM or EFB battery is required.

Q4- What terminal type and polarity does the Bosch S501-3use?
ANS- The S501-3uses a Type 1 terminal with polarity 0, meaning the positive terminal is positioned on the left when viewed from the front of the battery.

Q5- What hold-down type does the Bosch S501-3require?
ANS- The S501-3uses hold-down type B13. Please verify your vehicle's battery tray configuration before ordering to ensure correct fitment.

Q6- What cross-reference or fitment type does the Bosch S501-3correspond to?
ANS- The Bosch S501-3cross-references the widely used Type 019 fitment, which is common across a range of European passenger cars.

Q7- What warranty is included with the Bosch S5013?
ANS- The S501-3is supplied with a 5-year warranty, providing long-term assurance for dependable performance in the intended application.

Q8- Are there other batteries available in the Bosch S5 range?
ANS- Yes. The Bosch S5 range also includes the S5007, S5008, S5010, S5011, and S5015, covering a variety of vehicle fitments and capacity ratings.

Q9- What alternatives are available if the Bosch S501-3does not fit my vehicle?
ANS- Compatible alternatives in the Type 019 fitment include the Yuasa YBX1019, YBX1616, YBX1663, YBX1664, and YBX1643. Please verify dimensions, terminal configuration, and polarity before purchasing.

Q10- What are the delivery and returns terms for the Bosch S5013?
ANS- Standard delivery is 1-7 working days. A 14-day returns policy applies

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 5-year warranty from the date of purchase.
