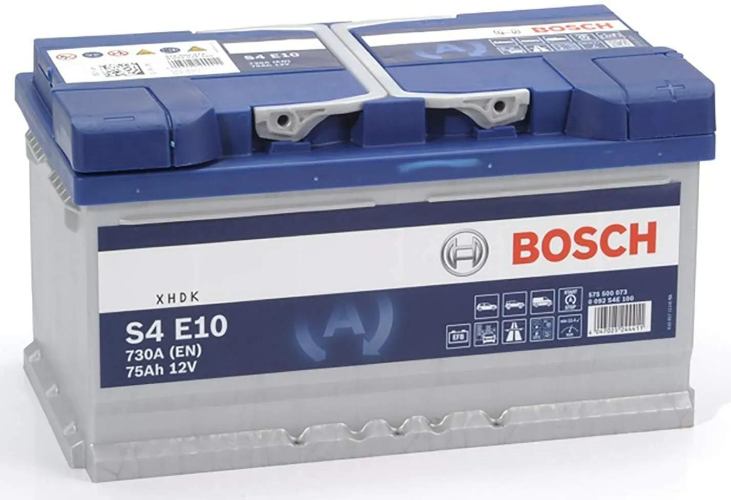

S4 E10 Bosch Car Battery 12V 75Ah Type 110 EFB - 575500073, 3 Years Warranty

Original price £115.83 - Original price £115.83
Original price
£115.83
£115.83 - £115.83
Current price £115.83
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: S4E10

    Start-stop systems place significantly greater demands on a vehicle battery than conventional ignition cycles, requiring a unit capable of withstanding repeated partial-state-of-charge operation without premature degradation. The Bosch S4E10 is a 12V 75Ah EFB battery engineered specifically to meet those demands, delivering 730A cold cranking amps (EN) for dependable engine starts across a wide range of operating conditions. Bosch developed the S4E range using Enhanced Flooded Battery technology, which reinforces the active plate material with a polyester scrim to improve charge acceptance and cycle durability. This construction allows the battery to recover efficiently from the deep discharge events inherent to start-stop operation, maintaining reliable cranking performance even when multiple electrical consumers remain active during an engine-off phase. The S4E10 measures 315mm x- 175mm - 175mm (L x- W x- H) and weighs 21.19kg. It features a Type 1 terminal arrangement, standard polarity (Terminal Placement 0), and a B13 hold-down configuration. The battery carries cross-reference code 110EFB, making it a direct replacement for vehicles specifying that type designation. Customers should verify fitment against their vehicle handbook prior to ordering. This product is part of the Bosch S4E EFB range. Related variants available on site include S4E08, S4E11, S4E13, S4E41, and S4E42, as well as Bosch Lithium options LE002, L4034, and L4027 for compatible applications. The S4E10 is supplied with a 3-year warranty, providing assurance of consistent performance throughout the expected service life of the unit. . The Bosch S4 battery with EFB technology is tailored to the requirements of passenger cars with start/stop systems. It ensures a safe start - even when many electrical consumers in the vehicle are in operation. EFB technology (Enhanced Flooded Battery): Positive plate coated with polyester scrim provides additional support for the active material and high cycle stability. Longer life and twice the cycle life of conventional starter batteries. Safe starting even at extreme temperatures and high number of electrical loads. Particularly good charge absorption and high short-distance resistance. Absolutely maintenance-free and leak-proof. Key Feature: Backed by 3-year warranty for reliable use and dependable performance. Product Group: 2604, BOSCH S4E EFB CAR BATTERY, purpose-built for dependable performance in the intended application. Engineered as a EFB Battery, delivering consistent, reliable operation in daily use. Manufactured by Bosch, a trusted name in automotive batteries, known for dependable quality. Weighs 21.2 kg (46.7 lb) balancing power and manageability for easier installation and handling. OEM-style fitment supports straightforward replacement and proper mounting. 12V system compatible with standard vehicle electrical requirements. Start stop suitable - Yes. Fitment to a Start stop vehicle is supported when matched to the correct specification. Compatibility: Suited for passenger cars, balancing reliable cold-cranking performance with long service life for daily use. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to EFB Battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Bosch
    • Voltage: 12V
    • Capacity AH (C20): 75Ah
    • Cold Cranking Amps (EN): 730A
    • L x- W x- H: 315mm x- 175mm x- 175mm
    • Warranty period: 3 Years
    • Weight (Kg): 21.19
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 315
    • Width (mm): 175
    • Height Inc. Terminal (mm): 175
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B13
    • Case Size:
    • ETN Number: 575500073
    • TTNR: 0092S4E100
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the cold cranking amp (CCA) rating of the Bosch S4E10?
ANS- The Bosch S4E10 is rated at 730A cold cranking amps measured to the EN standard, providing reliable engine starting performance in cold weather conditions.

Q2- Is the Bosch S4E10 compatible with start-stop vehicles?
ANS- Yes. The S4E10 is purpose-built for vehicles equipped with start-stop systems. Its EFB (Enhanced Flooded Battery) technology is designed to withstand the frequent charge and discharge cycling that start-stop operation demands.

Q3- What are the dimensions of the Bosch S4E10 battery?
ANS- The S4E10 measures 315mm in length, 175mm in width, and 175mm in height including the terminal. Always confirm these dimensions against your vehicle's battery tray before ordering.

Q4- What terminal layout and polarity does the S4E10 use?
ANS- The S4E10 uses a Type 1 terminal arrangement with standard polarity (Terminal Placement 0), meaning the positive terminal is positioned on the left when facing the terminal face. Verify this matches your vehicle's cable routing before fitting.

Q5- What hold-down type does the Bosch S4E10 require?
ANS- The S4E10 uses a B1-3hold-down configuration. Ensure your vehicle's battery tray and clamp bracket are compatible with the B1-3specification prior to installation.

Q6- What cross-reference code does the S4E10 correspond to?
ANS- The Bosch S4E10 carries the cross-reference code 110EFB. If your vehicle handbook or existing battery label specifies Type 110EFB, the S4E10 is the corresponding Bosch replacement, subject to dimensional and terminal verification.

Q7- What warranty does the Bosch S4E10 carry?
ANS- The S4E10 is backed by a 3-year warranty, covering the battery against defects in materials and workmanship under normal operating conditions.

Q8- How does EFB technology differ from a standard flooded battery?
ANS- EFB (Enhanced Flooded Battery) technology incorporates a polyester scrim bonded to the active plate material. This reinforcement improves charge acceptance and extends cycle life compared to a conventional flooded battery, making EFB units more suitable for the demands of start-stop operation.

Q9- Are there other variants in the Bosch S4E EFB range available on MachineRefurb?
ANS- Yes. The Bosch S4E EFB range on site includes the S4E08, S4E11, S4E13, S4E41, and S4E42. Bosch Lithium options LE002, L4034, and L4027 are also listed for compatible applications. Use your vehicle's specification to identify the correct variant.

Q10- What are the delivery and returns terms for the Bosch S4E10?
ANS- The S4E10 is dispatched via standard parcel delivery and arrives within 1-3 working days to addresses on the UK mainland. A 14-day returns policy applies Please ensure the battery is unused and in its original packaging if a return is required.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 3-year warranty from the date of purchase.
