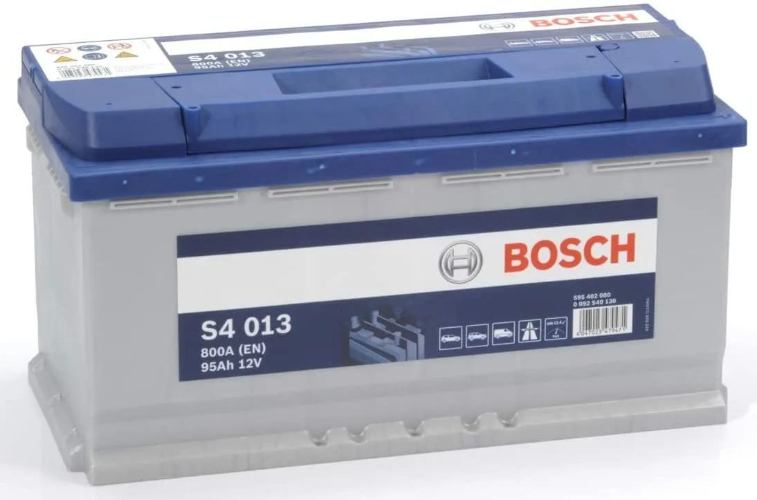

S4 013 Bosch Car Battery 12V 95Ah Type 019 - 595402080, 4 Years Warranty

Original price £105.95 - Original price £105.95
Original price
£105.95
£105.95 - £105.95
Current price £105.95
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: S4013

    High-compression starting systems and extended electrical loads place increasing demands on conventional lead-acid batteries, particularly in larger-engined vehicles where reliable cold-weather cranking is non-negotiable. The Bosch S4013 is a 12V 95Ah standard flooded lead-acid battery engineered to meet those demands, delivering 800A cold cranking amps (EN) with consistent performance across a broad operating temperature range. Manufactured to Bosch OEM specifications, the S4 series employs full frame grid technology, which distributes current uniformly across the plate surface to reduce internal resistance and slow grid corrosion. The result is a battery that maintains capacity over a longer service life than conventional partial-frame designs, without the complexity or cost premium of AGM or EFB technologies. The S4013 measures 353mm x- 175mm - 190mm (L x- W x- H) and fits the industry-standard Type 019 battery group. It uses Terminal 1 (positive right, polarity code 0) and is secured via hold-down type B13. The manufacturer cross-reference is 595402080. This battery is not suitable for start-stop vehicles; it is intended for conventional ignition systems only. The S4013 is part of a broader Bosch S4 range. Alternative capacities and dimensions are available under SKUs including S4007, S4008, S4009, S4010, S4011, S4026, S4027, S4028, and S4029, covering a wide range of fitment requirements. This battery is supplied with a 4-year manufacturer warranty, providing documented assurance of build quality and long-term reliability. . The Bosch S4 Battery ensures a powerful start for all types of vehicles and offers long service life, flushed tops for minimized risk of acid leakage, and dependable power in accordance with OEM requirements. It uses full frame grid technology, highly protective pocket separators and robust connections inside to extend lifetime and maximize reliability. Key Feature: Backed by 4-year warranty for reliable use and dependable performance. Robust handles for easy and safe installation and transportation. Flushed battery covers that minimize the risk of spilled acid which can destroy terminal posts, battery cover and surroundings of the battery in a vehicle. Full frame grid - for optimum current flow and reduced corrosion. Compatibility: Suited for passenger cars, balancing reliable cold-cranking performance with long service life for daily use. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Lead acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Bosch
    • Voltage: 12V
    • Capacity AH (C20): 95Ah
    • Cold Cranking Amps (EN): 800A
    • L x- W x- H: 353mm x- 175mm x- 190mm
    • Warranty period: 4 Years
    • Weight (Kg): 21.12
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 353
    • Width (mm): 175
    • Height Inc. Terminal (mm): 190
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B13
    • Case Size:
    • ETN Number: 595402080
    • TTNR: 0092S40130
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What are the dimensions of the Bosch S401-3battery?
ANS- The S401-3measures 353mm in length, 175mm in width, and 190mm in height including the terminal. It fits the Type 019 battery group.

Q2- What is the cold cranking amp (CCA) rating of the S4013?
ANS- The Bosch S401-3is rated at 800A cold cranking amps measured to the EN standard, making it well suited to larger petrol and diesel engines that require high starting current.

Q3- What is the terminal layout and polarity of the S4013?
ANS- The S401-3uses Terminal Type 1 with polarity code 0, meaning the positive terminal is positioned on the right-hand side when viewed from the front of the battery.

Q4- Is the Bosch S401-3suitable for start-stop vehicles?
ANS- No. The S401-3is a standard flooded lead-acid battery and is not compatible with start-stop systems. Vehicles with start-stop functionality require an AGM or EFB battery. Please check your vehicle handbook before ordering.

Q5- What hold-down type does the S401-3use?
ANS- The S401-3uses hold-down type B13. Please verify that your vehicle's battery tray and clamp system are compatible with this hold-down specification before fitting.

Q6- What is the manufacturer cross-reference number for the S4013?
ANS- The Bosch part number for the S401-3is 595402080. It is also commonly referenced as a Type 019 battery.

Q7- What warranty is provided with the Bosch S4013?
ANS- The S401-3is covered by a 4-year manufacturer warranty against defects in materials and workmanship under normal use conditions.

Q8- What technology does the Bosch S4 series use?
ANS- The Bosch S4 range uses full frame grid technology, which improves current distribution across the battery plates, reduces internal resistance, and extends service life compared to partial-frame grid designs.

Q9- Are there other capacities available in the Bosch S4 range on MachineRefurb?
ANS- Yes. The Bosch S4 range is available in multiple capacities and case sizes, including the S4007, S4008, S4009, S4010, S4011, S4026, S4027, S4028, and S4029. Each variant is listed separately with full fitment details.

Q10- What are the delivery and returns terms for the S4013?
ANS- Standard delivery is 1-7 working days. A 14-day returns policy applies For full terms, please refer to the MachineRefurb delivery and returns pages.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 4-year warranty from the date of purchase.
