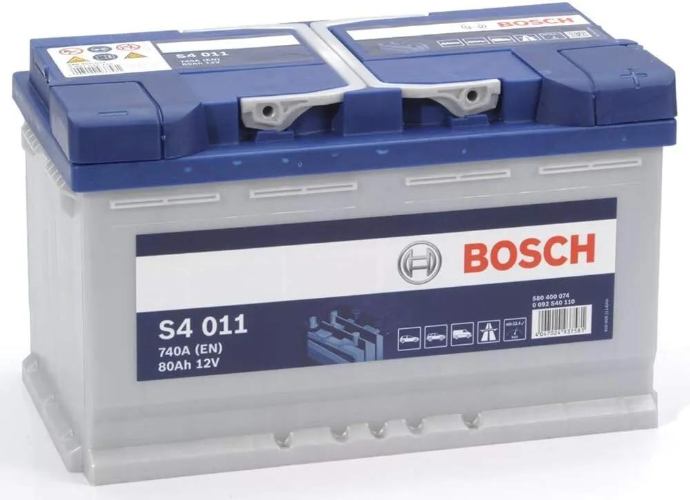

S4 011 Bosch Car Battery 12V 80Ah Type 115 - 580400074, 4 Years Warranty

Original price £101.89 - Original price £101.89
Original price
£101.89
£101.89 - £101.89
Current price £101.89
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: S4011

    Reliable cold-weather starting performance is a persistent challenge for high-demand petrol and diesel applications, particularly where OEM specifications demand consistent power output across a wide temperature range. The Bosch S4 011 is a 12V 80Ah standard flooded lead-acid battery engineered to meet those demands in conventional, non-start-stop vehicles. Manufactured using Bosch's full frame grid technology, the S4 011 delivers enhanced charge acceptance and a stable internal structure that resists corrosion and mechanical stress over time. Flushed battery covers reduce the risk of acid spillage during handling and in service, while robust carry handles support safe installation and transportation. The battery is produced in accordance with OEM requirements, ensuring compatibility with a broad range of factory-fit applications. The S4 011 measures 315mm x- 175mm - 190mm (L x- W x- H) and weighs 18.69kg. It is fitted with a Type 1 terminal configuration, hold-down type B13, and standard polarity (code 0, positive terminal on the left). Cold cranking performance is rated at 740A (EN). The cross-reference type number is 115. This battery is not suitable for start-stop vehicles. This product is available as part of the wider Bosch S4 range, which includes SKUs S4007, S4008, S4009, S4010, S4013, S4026, S4027, S4028, and S4029, covering a variety of capacities and fitments for passenger cars and light commercial vehicles." The Bosch S4 011 is supplied with a 4-year manufacturer warranty. " . The Bosch S4 Battery ensures a powerful start for all types of vehicles and offers long service life, flushed tops for minimized risk of acid leakage, and dependable power in accordance with OEM requirements. It uses full frame grid technology, highly protective pocket separators and robust connections inside to extend lifetime and maximize reliability. Key Feature: Backed by 4-year warranty for reliable use and dependable performance. Robust handles for easy and safe installation and transportation. Flushed battery covers that minimize the risk of spilled acid which can destroy terminal posts, battery cover and surroundings of the battery in a vehicle. Full frame grid - for optimum current flow and reduced corrosion. Compatibility: Suited for passenger cars, balancing reliable cold-cranking performance with long service life for daily use. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Lead acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Bosch
    • Voltage: 12V
    • Capacity AH (C20): 80Ah
    • Cold Cranking Amps (EN): 740A
    • L x- W x- H: 315mm x- 175mm x- 190mm
    • Warranty period: 4 Years
    • Weight (Kg): 18.69
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 315
    • Width (mm): 175
    • Height Inc. Terminal (mm): 190
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B13
    • Case Size:
    • ETN Number: 580400074
    • TTNR: 0092S40110
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the cold cranking amperage (CCA) of the Bosch S4 011 battery?
ANS- The Bosch S4 011 is rated at 740A CCA measured to the EN standard, making it well suited to petrol and diesel engines with moderate to high cranking requirements.

Q2- Is the Bosch S4 011 suitable for vehicles with start-stop systems?
ANS- No. The S4 011 is a standard flooded lead-acid battery and is not suitable for start-stop vehicles. For start-stop applications, a dedicated AGM or EFB battery such as the Bosch S5 A11 is required.

Q3- What are the dimensions and weight of the S4 011?
ANS- The battery measures 315mm in length, 175mm in width, and 190mm in height including the terminal. It weighs 18.69kg.

Q4- What terminal type and polarity does the S4 011 use?
ANS- The S4 011 uses a Type 1 terminal configuration with standard polarity (polarity code 0), meaning the positive terminal is positioned on the left when viewed from the front of the battery.

Q5- What is the cross-reference type number for the S4 011?
ANS- The S4 011 corresponds to battery Type 115. This is the industry-standard type reference used to confirm physical and electrical compatibility with your vehicle.

Q6- What hold-down type is compatible with the Bosch S4 011?
ANS- The S4 011 uses hold-down type B13. Please verify that your vehicle's battery tray and securing bracket match this specification before fitting.

Q7- What warranty is provided with the Bosch S4 011?
ANS- The S4 011 is covered by a 4-year manufacturer warranty, providing assurance of long-term reliability and performance under normal operating conditions.

Q8- What technology does the Bosch S4 battery use?
ANS- The Bosch S4 range uses full frame grid technology, which improves structural integrity and charge acceptance compared to conventional partial-frame designs. Flushed battery covers also minimise the risk of acid leakage.

Q9- Are there other capacities available in the Bosch S4 range on MachineRefurb?
ANS- Yes. The Bosch S4 range on MachineRefurb includes multiple SKUs: S4007, S4008, S4009, S4010, S4013, S4026, S4027, S4028, and S4029, covering a variety of capacities and fitments for different vehicle types.

Q10- What are the delivery and returns terms for the Bosch S4 011?
ANS- Standard delivery is 1-7 working days. A 14-day returns policy applies Please ensure the battery is unused and in its original packaging to qualify for a return.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 4-year warranty from the date of purchase.
