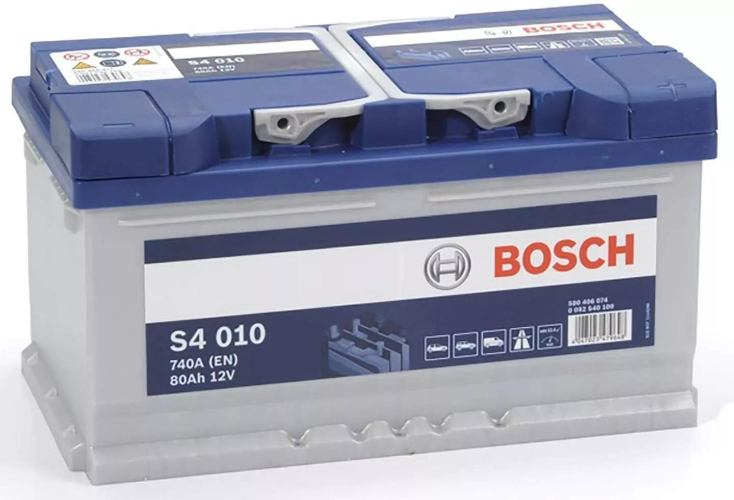

S4 010 Bosch Car Battery 12V 80Ah Type 110 - 580406074, 4 Years Warranty

Original price £100.94 - Original price £100.94
Original price
£100.94
£100.94 - £100.94
Current price £100.94
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: S4010

    Reliable cold-weather starting performance is a persistent challenge for conventional petrol and diesel vehicles, particularly during prolonged winter periods. The Bosch S4010 is a 12V 80Ah lead-acid starter battery engineered to meet the power demands of a broad range of standard passenger cars and light commercial vehicles without start-stop systems. Manufactured to Bosch's established S4 specification, the S4010 employs full frame grid technology to maximise active material utilisation and extend service life. The flushed top cover design minimises the risk of acid leakage during handling and operation, whilst the integrated carry handles facilitate safe installation and transportation. The battery delivers 740A Cold Cranking Amps (EN), providing dependable ignition performance in low-temperature conditions and meeting OEM power requirements across compatible applications. The S4010 is a direct-fit Type 110 battery with dimensions of 315mm x- 175mm - 175mm and a weight of 18.1kg. It features Terminal 1 (positive right) polarity designation 0, and Hold-Down B13. Cross-reference: Type 110, OEM reference 580406074. Not suitable for start-stop vehicles. The S4010 is part of the wider Bosch S4 range, which includes variants S4007, S4008, S4009, S4011, S4013, S4026, S4027, S4028, and S4029, covering a broad spread of capacities and fitments for standard ignition vehicles." This battery is covered by a 4-year manufacturer warranty. " . The Bosch S4 Battery ensures a powerful start for all types of vehicles and offers long service life, flushed tops for minimized risk of acid leakage, and dependable power in accordance with OEM requirements. It uses full frame grid technology, highly protective pocket separators and robust connections inside to extend lifetime and maximize reliability. Key Feature: Backed by 4-year warranty for reliable use and dependable performance. Robust handles for easy and safe installation and transportation. Flushed battery covers that minimize the risk of spilled acid which can destroy terminal posts, battery cover and surroundings of the battery in a vehicle. Full frame grid - for optimum current flow and reduced corrosion. Compatibility: Suited for passenger cars, balancing reliable cold-cranking performance with long service life for daily use. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Lead acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Bosch
    • Voltage: 12V
    • Capacity AH (C20): 80Ah
    • Cold Cranking Amps (EN): 740A
    • L x- W x- H: 315mm x- 175mm x- 175mm
    • Warranty period: 4 Years
    • Weight (Kg): 18.1
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 315
    • Width (mm): 175
    • Height Inc. Terminal (mm): 175
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B13
    • Case Size:
    • ETN Number: 580406074
    • TTNR: 0092S40100
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the cold cranking amperage of the Bosch S4010 battery?
ANS- The Bosch S4010 delivers 740A Cold Cranking Amps (CCA) as measured to the EN standard, providing reliable engine starting performance in low-temperature conditions.

Q2- What are the dimensions of the Bosch S4010 battery?
ANS- The S4010 measures 315mm in length, 175mm in width, and 175mm in height including the terminal. It weighs 18.1kg.

Q3- What terminal layout and polarity does the Bosch S4010 use?
ANS- The S4010 uses Terminal type 1 with polarity designation 0, meaning the positive terminal is positioned on the left when viewed from the front. The hold-down type is B13.

Q4- Is the Bosch S4010 suitable for start-stop vehicles?
ANS- No. The S4010 is a standard lead-acid battery and is not suitable for vehicles fitted with start-stop systems. For start-stop applications, an EFB or AGM battery is required.

Q5- What is the Type reference and OEM cross-reference for the Bosch S4010?
ANS- The S4010 is classified as a Type 110 battery and carries OEM cross-reference number 580406074.

Q6- What warranty is provided with the Bosch S4010?
ANS- The Bosch S4010 is covered by a 4-year manufacturer warranty, providing assurance of long-term reliability and dependable performance.

Q7- What technology does the Bosch S4 battery use?
ANS- The Bosch S4 series uses full frame grid technology, which maximises the utilisation of active material within the battery plates to extend service life and maintain consistent power output over time.

Q8- Does the Bosch S4010 have a flushed top cover?
ANS- Yes. The S4010 features a flushed battery cover design, which minimises the risk of acid spillage during handling, installation, and operation.

Q9- What other batteries are available in the Bosch S4 range?
ANS- Related S4 variants available on MachineRefurb include the S4007, S4008, S4009, S4011, S4013, S4026, S4027, S4028, and S4029, spanning a range of capacities and fitments for standard ignition vehicles.

Q10- What are the delivery and returns terms for the Bosch S4010?
ANS- Standard delivery is 1-7 working days. A 30-day returns policy applies to this product.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 4-year warranty from the date of purchase.
