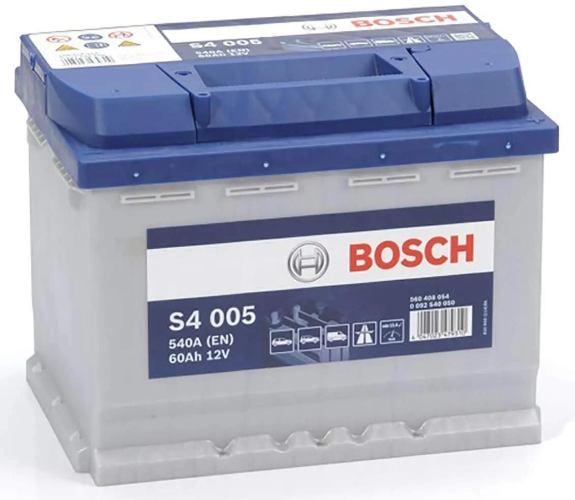

S4 005 Bosch Car Battery 12V 60Ah Type 027 - 560408054, 4 Years Warranty

Original price £79.91 - Original price £79.91
Original price
£79.91
£79.91 - £79.91
Current price £79.91
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: S4005

    Reliable cold-weather starting and consistent electrical performance are essential demands for conventional petrol and diesel vehicles, yet many standard replacement batteries fall short of original equipment specifications. The Bosch S4 005 addresses this directly as a 12V, 60Ah lead-acid battery delivering 540A cold cranking amps, engineered to meet the power requirements of a broad range of passenger cars and light commercial vehicles without start-stop systems. Manufactured using Bosch's full frame grid technology, the S4 005 provides improved charge acceptance and extended cycle life compared to partial-frame designs. The flushed battery cover minimises the risk of acid leakage during handling and in service, while the integrated robust carry handles allow safe installation and transportation. The technology is produced in compliance with OEM standards, ensuring the S4 range performs to the tolerances vehicle manufacturers specify at the point of build. The S4 005 measures 242mm (L) x- 175mm (W) x- 190mm (H including terminal) and weighs 14.42kg. It features Terminal Type 1 with standard polarity (Layout 0, positive terminal right), and uses hold-down clamp type B13. This battery cross-references to the UK Type 027 fitment code. Equivalent OEM reference: 560408054. Not suitable for start-stop, EFB, or AGM applications. This product is available across the Bosch S4 range in multiple capacities and fitment configurations, including S4000, S4001, S4002, S4004, S4018, S4019, S4020, S4021, S4022, and S4023, to suit a wide variety of vehicle applications. The Bosch S4 005 is supplied with a 4-year manufacturer warranty, providing documented assurance of long-term performance and reliability for fleet operators and private motorists alike. . The Bosch S4 Battery ensures a powerful start for all types of vehicles and offers long service life, flushed tops for minimized risk of acid leakage, and dependable power in accordance with OEM requirements. It uses full frame grid technology, highly protective pocket separators and robust connections inside to extend lifetime and maximize reliability. Key Feature: Backed by 4-year warranty for reliable use and dependable performance. Robust handles for easy and safe installation and transportation. Flushed battery covers that minimize the risk of spilled acid which can destroy terminal posts, battery cover and surroundings of the battery in a vehicle. Full frame grid - for optimum current flow and reduced corrosion. Compatibility: Suited for passenger cars, balancing reliable cold-cranking performance with long service life for daily use. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Lead acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Bosch
    • Voltage: 12V
    • Capacity AH (C20): 60Ah
    • Cold Cranking Amps (EN): 540A
    • L x- W x- H: 242mm x- 175mm x- 190mm
    • Warranty period: 4 Years
    • Weight (Kg): 14.42
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 242
    • Width (mm): 175
    • Height Inc. Terminal (mm): 190
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B13
    • Case Size:
    • ETN Number: 560408054
    • TTNR: 0092S40050
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the cold cranking amps (CCA) rating of the Bosch S4005?
ANS- The Bosch S4005 is rated at 540A cold cranking amps (CCA) measured to the EN standard, making it suitable for reliable cold-weather starting in conventional petrol and diesel vehicles.

Q2- What are the dimensions of the Bosch S4005 battery?
ANS- The Bosch S4005 measures 242mm in length, 175mm in width, and 190mm in height including the terminal. It weighs 14.42kg.

Q3- Which terminal type and polarity does the S4005 use?
ANS- The S4005 uses Terminal Type 1 with Layout 0, meaning the positive terminal is positioned on the right-hand side when viewed from the front. The hold-down clamp type is B13.

Q4- Is the Bosch S4005 suitable for start-stop vehicles?
ANS- No. The Bosch S4005 is a standard lead-acid battery and is not suitable for vehicles equipped with start-stop systems. For start-stop applications, an EFB or AGM battery is required.

Q5- What UK battery type code does the S4005 correspond to?
ANS- The Bosch S4005 cross-references to the UK Type 027 fitment code. The OEM part reference is 560408054.

Q6- What warranty does the Bosch S4005 carry?
ANS- The Bosch S4005 is supplied with a 4-year manufacturer warranty, covering defects in materials and workmanship under normal operating conditions.

Q7- What technology does the Bosch S4 range use?
ANS- The Bosch S4 range uses full frame grid technology, which improves charge acceptance, reduces internal resistance, and extends service life compared to partial-frame grid designs. The flushed battery cover additionally minimises acid leakage risk.

Q8- Can the Bosch S4005 replace an Exide EL600 or other 027 EFB batteries?
ANS- The S4005 shares the Type 027 physical fitment, but it is a standard flooded lead-acid battery. If your vehicle originally specified an EFB or AGM battery, fitting a standard battery such as the S4005 is not recommended, as it may not support the vehicle's charging and energy management systems adequately.

Q9- Are there other capacity options available in the Bosch S4 range on MachineRefurb?
ANS- Yes. The Bosch S4 range is available in multiple variants including S4000, S4001, S4002, S4004, S4018, S4019, S4020, S4021, S4022, and S4023, covering a range of capacities and fitment configurations to suit different vehicle requirements.

Q10- What are the delivery and returns terms for the Bosch S4005?
ANS- The Bosch S4005 is dispatched via standard parcel delivery. Standard delivery takes 1-3 working days within UK mainland. A 14-day returns policy applies

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 4-year warranty from the date of purchase.
