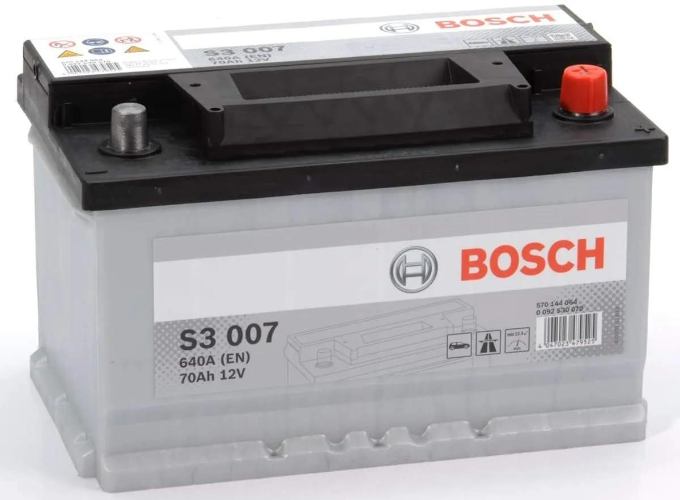

S3 007 Bosch Car Battery 12V 70Ah Type 100 - 570144064, 3 Years Warranty

Original price £91.49 - Original price £91.49
Original price
£91.49
£91.49 - £91.49
Current price £91.49
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: S3007

    Older vehicles with conventional ignition systems place consistent but modest demands on their batteries, requiring a dependable power source that balances capacity with cost efficiency. The Bosch S3 007 is a 12V, 70Ah lead-acid starter battery engineered specifically for this application, delivering 640 CCA (EN) to ensure reliable cold-weather engine starts across a wide range of passenger cars and light commercial vehicles that do not feature start-stop technology. Manufactured using Bosch's proprietary PowerFrame? grid technology, the S3 007 benefits from an optimised lead alloy structure that improves charge acceptance, reduces internal resistance, and extends cycle life compared with conventional expanded-grid designs. The labyrinth lid provides an additional layer of protection by recirculating electrolyte vapour back into the cell, minimising water loss and making the battery 100% maintenance free under normal operating conditions. The S3 007 occupies a 278 x- 175 x- 175 mm footprint and weighs 15.73 kg. It is built to BCI/DIN Type 100 and carries cross-reference code 100. Terminal layout is Type 1 (positive right, standard European polarity 0), and the hold-down configuration is B13. This battery is not suitable for start-stop, EFB, or AGM applications. This product is available in related variants: S3008, S3013, and S3012, which cover alternative capacities and fitments within the Bosch S3 range. The Bosch S3 007 is supplied with a 3-year warranty, providing assurance of consistent performance throughout the battery's service life. . S3 with PowerFrame® technology and labyrinth lid. The economical solution for many older cars with few electrical consumers. Key Feature: Backed by 3-year warranty for reliable use and dependable performance. Weighs 15.73 kg, balancing high capacity with manageable handling for easy fitting and routine maintenance. Robust handles for easy and safe installation and transportation. Flushed battery covers that minimize the risk of spilled acid which can destroy terminal posts, battery cover and surroundings of the battery in a vehicle. Full frame grid - for optimum current flow and reduced corrosion. Compatibility: Suited for passenger cars, balancing reliable cold-cranking performance with long service life for daily use. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Lead acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Bosch
    • Voltage: 12V
    • Capacity AH (C20): 70Ah
    • Cold Cranking Amps (EN): 640A
    • L x- W x- H: 278mm x- 175mm x- 175mm
    • Warranty period: 3 Years
    • Weight (Kg): 15.73
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 278
    • Width (mm): 175
    • Height Inc. Terminal (mm): 175
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B13
    • Case Size:
    • ETN Number: 570144064
    • TTNR: 0092S30070
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the voltage and capacity of the Bosch S3007 battery?
ANS- The Bosch S3007 is a 12-volt battery with a capacity of 70Ah (rated at C20). It delivers 640 Cold Cranking Amps (CCA) as measured to the EN standard, making it suitable for reliable cold-weather engine starting.

Q2- Is the Bosch S3007 compatible with start-stop vehicles?
ANS- No. The S3007 is a conventional lead-acid starter battery and is not suitable for vehicles equipped with start-stop systems. Start-stop applications require an EFB or AGM battery. Please verify your vehicle's requirements before ordering.

Q3- What are the physical dimensions and weight of the S3007?
ANS- The battery measures 278mm (length) — 175mm (width) — 175mm (height including terminal). It weighs 15.73 kg. Please confirm these dimensions fit your vehicle's battery tray before purchase.

Q4- What terminal type and polarity does the Bosch S3007 use?
ANS- The S3007 uses a Type 1 terminal arrangement with standard European polarity 0, meaning the positive terminal is positioned on the right-hand side when viewed from the front. The hold-down configuration is B13.

Q5- What cross-reference or type number does the Bosch S3007 correspond to?
ANS- The Bosch S3007 corresponds to battery Type 100 and carries the manufacturer part number 570144064. It is interchangeable with other batteries listed under the Type 100 fitment group, subject to dimensional and terminal verification.

Q6- What technology does the Bosch S3 range use and what are the benefits?
ANS- The Bosch S3 range incorporates PowerFrame® grid technology, which uses an optimised lead alloy structure to improve charge acceptance and reduce internal resistance compared with conventional expanded-grid batteries. The labyrinth lid recirculates electrolyte vapour to minimise water loss, making the battery 100% maintenance free under normal operating conditions.

Q7- What warranty does the Bosch S3007 carry?
ANS- The Bosch S3007 is supplied with a 3-year manufacturer warranty, covering defects in materials and workmanship under normal operating conditions. Please retain your proof of purchase for any warranty claim.

Q8- Are there other batteries in the Bosch S3 range available on MachineRefurb?
ANS- Yes. Related variants available on the site include the S3008 (PID000138444), S301-3(PID000138445), and S3012 (PID000199719), which offer alternative capacities and fitments within the Bosch S3 family.

Q9- Is the Bosch S3007 maintenance free?
ANS- Yes. Under normal operating conditions the S3007 is 100% maintenance free. The labyrinth lid design returns electrolyte vapour to the cells, eliminating the need to top up distilled water during the battery's service life.

Q10- What are the delivery and returns terms for the Bosch S3007?
ANS- Standard delivery is 1-7 working days. A 14-day returns policy applies For full terms, please refer to the MachineRefurb delivery and returns policy at the time of order.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 3-year warranty from the date of purchase.
