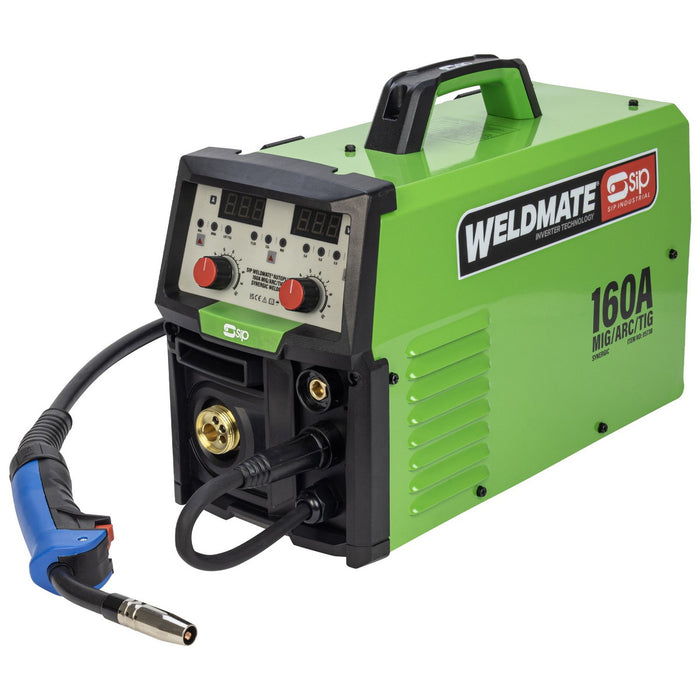

SIP 05738 WELDMATE® AUTOPLUS 160A MIG/ARC/TIG Synergic Inverter Welder, Ex-Showroom, Grade B, 12 Months Warranty
Sold Out
Original price
£248.08
-
Original price
£248.08
Original price
£248.08
£248.08
-
£248.08
Current price
£248.08
- Product Description
- Technical Specification
- Grade Description
- Warranty Details
-
Product Number: 05738
- The SIP WELDMATE AUTOPLUS 160A MIG/ARC/TIG Synergic Inverter Welder is a multi-process inverter welder specifically designed for use in automotive and garage environments.
- Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
- It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds.
- Multi-process MIG/ARC/TIG welder for greater flexibility
- Pure Synergic Control for more consistent and higher quality welds
- Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)
- Heavy-duty aluminium wire feeder for smooth consistent flow of wire
- Intuitive control panel to select between process, gas and wire size
- Metal casing with strong-grip carry handle for long life use
- Technical Specification
- ITEM NO. 05738
- Input Supply: 230v (16A)
- Output Voltage: 16.5v - 22v (MIG) / 20.8v - 26.4v (ARC) / 10.8v - 16.4v (TIG)
- Output Current: 20A - 160A (MIG) / 20A - 160A (ARC) / 20A - 160A (TIG)
- Duty Cycle @ 20C: 160A @ 30% (MIG) / 160A @ 30% (ARC) / 160A @ 30% (TIG)
- Wire Diameter: ⌀ 0.8mm - 0.9mm
- Wire Spool Size: 0.7kg, 5kg
- Welding Material Thickness: 0.8mm - 5.5mm (mild steel)
- Protection / Insulation 21S / H
-
- Input Supply: 230v (16A)
- Output Voltage: 16.5v - 22v (MIG) / 20.8v - 26.4v (ARC) / 10.8v - 16.4v (TIG)
- Output Current: 20A - 160A (MIG) / 20A - 160A (ARC) / 20A - 160A (TIG)
- Duty Cycle @ 20°C: 160A @ 30% (MIG) / 160A @ 30% (ARC) / 160A @ 30% (TIG)
- Wire Diameter: ⌀ 0.8mm - 0.9mm
- Wire Spool Size: 0.7kg, 5kg
- Welding Material Thickness: 0.8mm - 5.5mm (mild steel)
- Protection / Insulation 21S / H
-
A Grade - Exceptional value product that may be re-boxed or re-assembled, just like new! Comes with new equipment warranty (with a few exceptions).
B Grade - An ex-display, new returned or lightly used product with minor scratches or cosmetic wear. Fully tested with great warranty.
C Grade - A used or refurbished unit with visible signs of handling or previous use, but tested to ensure full functionality and comes with a great 3–6 months warranty. -
A Grade - 24 months warranty from purchase is available on this product.
B Grade - 12 months warranty from purchase is available on this product.
C Grade - 3 months warranty from purchase is available on this product.
