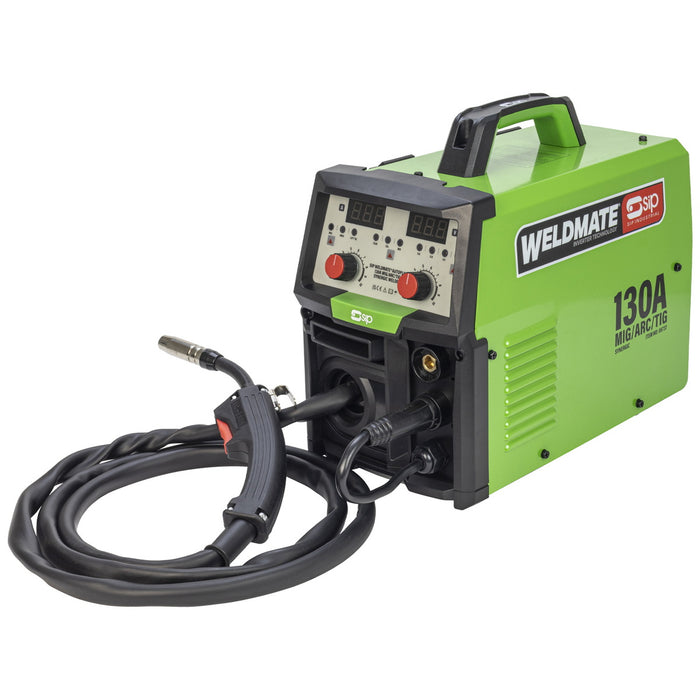

SIP 05737 WELDMATE® AUTOPLUS 130A MIG/ARC/TIG Synergic Welder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 05737
The SIP WELDMATE AUTOPLUS 130A MIG,ARC,TIG Synergic Welder is a multi-process inverter welder specificially designed for use in automotive and garage environments, and is powered from a 13A supply. Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs. It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher-quality welds. Product Key Features:- Multi-process MIG,ARC,TIG welder for greater flexibility Pure Synergic Control for more consistent and higher quality welds Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment) Durable wire feeder ensures smooth consistent flow of wire to torch Intuitive control panel to select between process, gas and wire size Metal casing with strong-grip carry handle for long life use
-
- ITEM NO:05737
- Input Supply: 230v (13A)
- Welding Process: MIG
- Output Voltage: 16.5v - 20v
- Output Current: 20A - 130A
- Duty Cycle @ 40°C: 130A @ 15%
- Welding Process: ARC
- Output Voltage:20.8v - 25.2v
- Output Current:20A - 130A
- Duty Cycle @ 40°C:130A @ 15%
- Welding Process: TIG
- Output Voltage: 10.8v - 15.2v
- Output Current:20A - 130A
- Duty Cycle @ 40°C:130A @ 15%
- Wire Diameter: ⌀ 0.8mm - 0.9mm
- Wire Spool Size: 0.7kg
- Welding Material Thickness: 0.8mm - 6.4mm (mild steel)
- Protection / Insulation :21S / H
- Net Weight: 8.00kg
- Gross Weight: 9.50kg
- Product Dimensions: 310(H) x 170(W) x 330mm(D)
- Packaged Dimensions: 405(H) x 330(W) x 365mm(D)
-
New Grade - 24 Months Warranty from purchase is available on this product.
