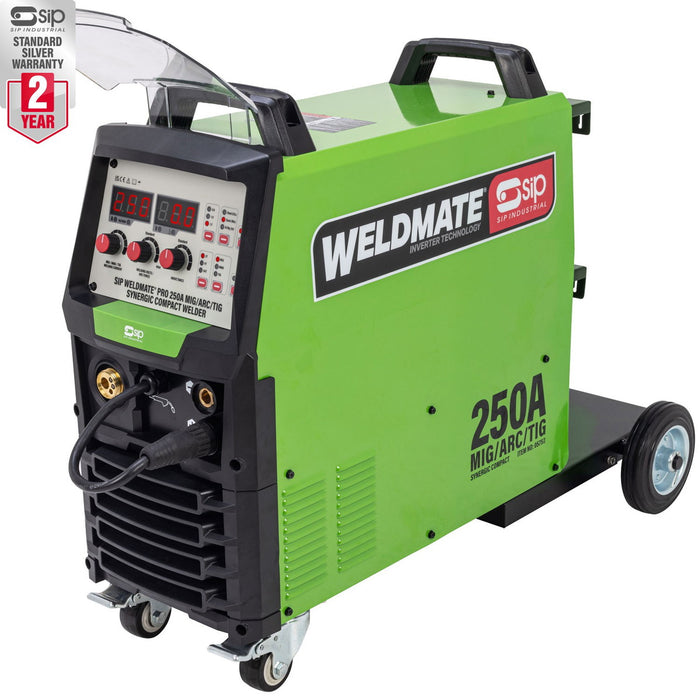

SIP 05752 WELDMATE® PRO 250A MIG/ARC/TIG Synergic Compact Welder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 05752
The SIP WELDMATE PRO 250A MIG/ARC/TIG Synergic Compact Welder is a multi-process inverter welder specifically designed for use in professional fabrication workshops. Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs. It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds. Applications uses: Ideal for use in professional fabrication workshops. Perfect for sheet metal applications. Suitable for MIG/ARC/TIG welding and performs flux-cored welding. Ideal for mild steels and welds *stainless steel and **aluminium. *Using stainless steel welding wire. **Using aluminium welding wire and pure Argon gas. Product Key Features : Multi-process MIG/ARC/TIG welder for greater welding flexibility at high-duty cycles Features Pure Synergic Control for more consistent and higher quality welds Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment) Heavy-duty cast aluminium 2-roll wire feeder for smooth consistent flow of wire Intuitive control panel to select between welding processes and function settings Wheel-mounted design with lockable front castors for mobility around work area
-
- ITEM NO. :05752
- Input Supply: 230v (32A)
- Welding Process: MIG ARC TIG
- Output Voltage: 15.5v - 26.5v ,21.2v - 30v, 10.4v - 20v
- Output Current: 30A - 250A ,30A - 250A, 10A - 250A
- Duty Cycle @ 20°C: 250A @, 80% 250A @, 80% 250A @ 80%
- Wire Diameter: ⌀ 0.8mm - 1.2mm
- Wire Spool Size: 5kg, 15kg
- Welding Material Thickness: 0.8mm - 6.4mm (mild steel) / 3.2mm - 7.9mm (aluminium)
- Protection / Insulation :21S / H
- Net Weight: 40kg
- Gross Weight: 43kg
- Product Dimensions: 650(H) x 450(W) x 880mm(D)
- Packaged Dimensions: 620(H) x 400(W) x 670mm(D)
-
New Grade - 24 Months Warranty from purchase is available on this product.
