Disc Spring - DIN2093 - Outer Diameter 80mm, Inner Diameter 31mm, Material Thickness 4mm, Metrol - 4393
Original price
£13.61
-
Original price
£13.61
Original price
£13.61
£13.61
-
£13.61
Current price
£13.61
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 4393

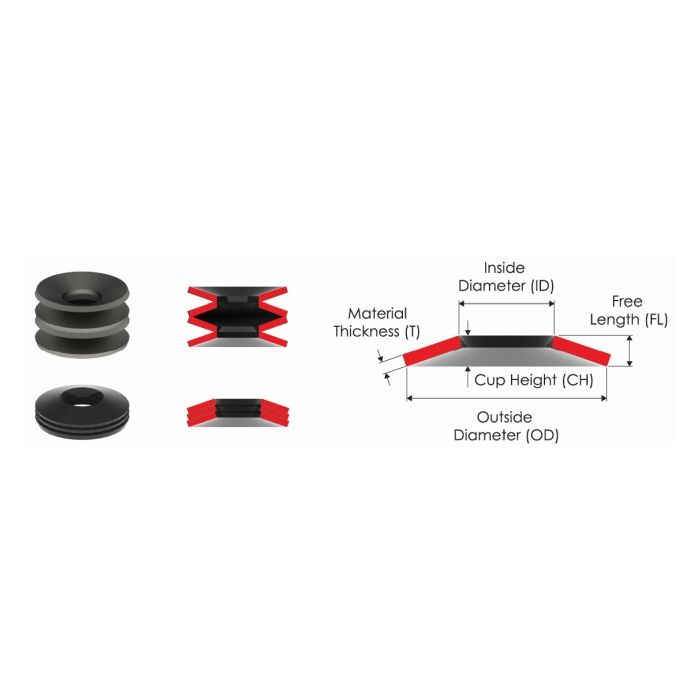

Disc Spring - DIN2093 - 80X31X4.
-
- F 100%:24791 N
- F 25%:7319 N
- F 50%:13677 N
- F 75%:19394 N
- FL:6,1 mm
- h0:2,1 mm
- h0/t:0,525 mm
- ID:31 mm
- Material:51CrV4
- OD:80 mm
- s 100%:2,1 mm
- s 25%:0,525 mm
- s 50%:1,05 mm
- s 75%:1,575 mm
- Surface:Shot peened, phosphated, blackened and oiled
- T:4 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
