Disc Spring - DIN2093 - Outer Diameter 18mm, Inner Diameter 6,2mm, Material Thickness 0,6mm, Metrol - 4273
Original price
£9.42
-
Original price
£9.42
Original price
£9.42
£9.42
-
£9.42
Current price
£9.42
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 4273

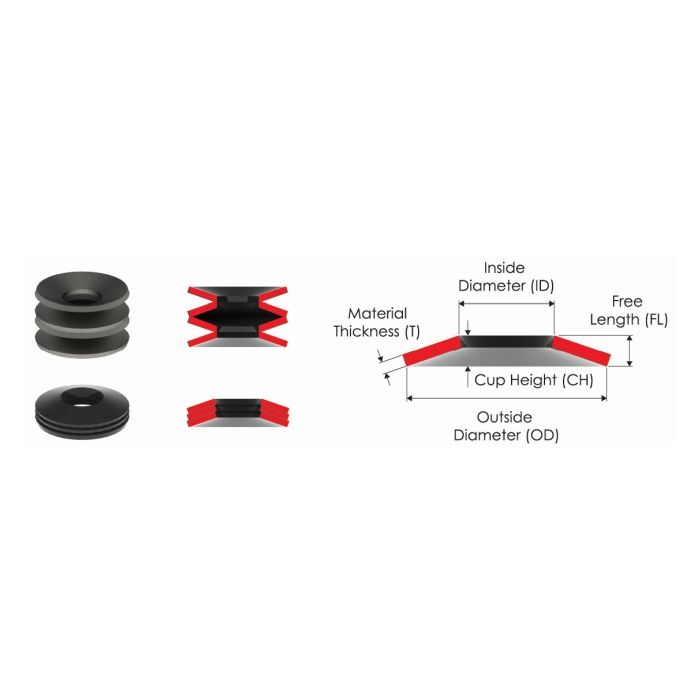

Disc Spring - DIN2093 - 18X6,2X0,6.
-
- F 100%:461,6 N
- F 25%:191,1 N
- F 50%:317,3 N
- F 75%:400,3 N
- FL:1,2 mm
- h0:0,6 mm
- h0/t:1 mm
- ID:6,2 mm
- Material:CK67/51CrV4
- OD:18 mm
- s 100%:0,6 mm
- s 25%:0,15 mm
- s 50%:0,3 mm
- s 75%:0,45 mm
- Surface:Shot peened, phosphated, blackened and oiled
- T:0,6 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
