Disc Spring - DIN2093 - Outer Diameter 12,5mm, Inner Diameter 6,2mm, Material Thickness 0,3mm, Metrol - 4253
Original price
£11.39
-
Original price
£11.39
Original price
£11.39
£11.39
-
£11.39
Current price
£11.39
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 4253

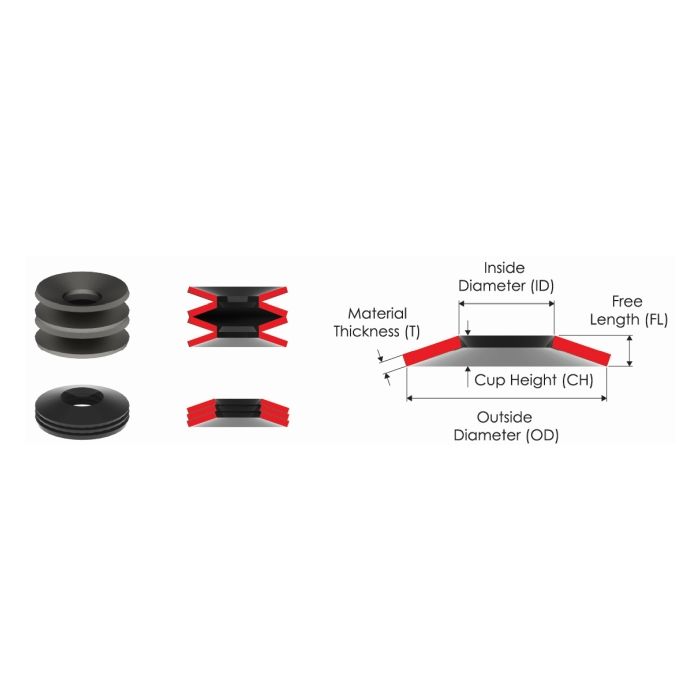

Disc Spring - DIN2093 - 12,5X6,2X0,3.
-
- F 100%:160,2 N
- F 25%:83,5 N
- F 50%:129,8 N
- F 75%:151,2 N
- FL:0,8 mm
- h0:0,45 mm
- h0/t:1,285 mm
- ID:6,2 mm
- Material:CK67/51CrV4
- OD:12,5 mm
- s 100%:0,45 mm
- s 25%:0,112 mm
- s 50%:0,225 mm
- s 75%:0,337 mm
- Surface:Shot peened, phosphated, blackened and oiled
- T:0,3 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
